IDTQS3VH384

Features: • N channel FET switches with no parasitic diode to VCC Isolation under power-off conditions No DC path to VCC or GND 5V tolerant in OFF and ON state• 5V tolerant I/Os• Low RON - 4Ω typical• Flat RON characteristics over operating range• Rail-to-rai...

product image

IDTQS3VH384 Picture
See larger image
SeekIC No. : 004373486 Detail

IDTQS3VH384: Features: • N channel FET switches with no parasitic diode to VCC Isolation under power-off conditions No DC path to VCC or GND 5V tolerant in OFF and ON state• 5V tolerant I/Os•...

IDTQS3VH384 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS3VH384
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• N channel FET switches with no parasitic diode to VCC
  Isolation under power-off conditions
  No DC path to VCC or GND
  5V tolerant in OFF and ON state
• 5V tolerant I/Os
• Low RON - 4Ω typical
• Flat RON characteristics over operating range
• Rail-to-rail switching 0 - 5V
• Bidirectional dataflow with near-zero delay: no added groundbounce
• Excellent RON matching between channels
• VCC operation: 2.3V to 3.6V
• High bandwidth - up to 500MHz
• LVTTL-compatible control Inputs
• Undershoot Clamp Diodes on all switch and control Inputs
• Low I/O capacitance, 4pF typical
• Available in QSOP and TSSOP packages


Application

• Hot-swapping
• 10/100 Base-T, Ethernet LAN switch
• Low distortion analog switch
• Replaces mechanical relay
• ATM 25/155 switching


Pinout

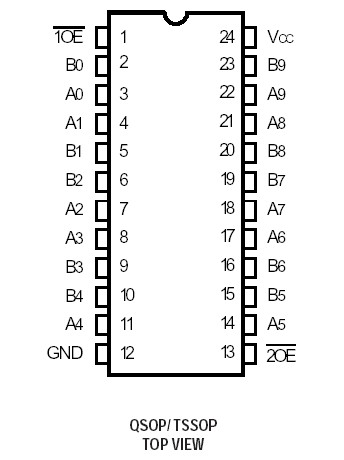

Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +4.6
V
VTERM(3)
DC Switch Voltage Vs
0.5 to +5.5
V
VTERM(3)
DC Input Voltage VIN
0.5 to +5.5
V
VAC
AC Input Voltage (pulse width 20ns)
3
V
IOUT
DC Output Current (max. sink current/pin)
120
mA
TSTG
Storage Temperature
65 to +150



Description

The IDTQS3VH384 HotSwitch is a high bandwidth, 10-bit bus switch. The IDTQS3VH384 has very low ON resistance, resulting in under 250ps propagationdelay through the switch. Two banks of five switches are controlled byindependent (xOE), LVTTL compatible signals for bidirectional data flow withno added delay or ground bounce. In the ON state, the switch can pass signalsup to 5V. In the OFF state, the switches offer very high impedence at theterminals.

The combination of near-zero propagation delay, high OFF impedance, andover-voltage tolerance makes the IDTQS3VH384 ideal for high performancecommunications applications.

The IDTQS3VH384 is characterized for operation from -40 to +85.
