Features: * N channel FET switches with no parasitic diode to VCC Isolation under power-off conditions No DC path to VCCor GND 5V tolerant in OFF and ON state* 5V tolerant I/Os* Low RON- 4 typical* Flat RONcharacteristics over operating range* Rail-to-rail switching 0 - 5V* Bidirectional dataflow ...
IDTQS3VH257: Features: * N channel FET switches with no parasitic diode to VCC Isolation under power-off conditions No DC path to VCCor GND 5V tolerant in OFF and ON state* 5V tolerant I/Os* Low RON- 4 typical* ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Description | Max | Unit |
VTERM(2) | SupplyVoltage to Ground | 0.5 to +4.6 | V |
VTERM(3) | DC Switch Voltage VS | 0.5 to +5.5 | V |
VTERM(3) | DC Input Voltage VIN | 0.5 to +5.5 | V |
VAC | AC Input Voltage (pulse width 20ns) | 3 | V |
IOUT | DC Output Current (max. sink current/pin) | 120 | mA |
TSTG | Storage Temperature | 65 to +150 |

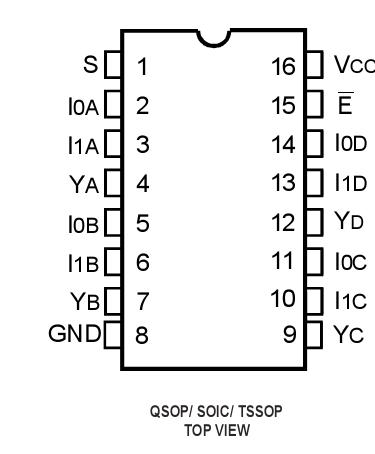

The IDTQS3VH257 HotSwitch Quad 2:1 multiplexer/demultiplexer is a high bandwidth bus switch. The IDTQS3VH257 has very low ON resistance, resulting in under 250ps propagation delay through the switch.The Select (S) input controls the data flow. he multiplexers/demultiplexers are enabled when the Enable (E) input is low. In the ON state, the switches can pass signals up to 5V. In the OFF state, the switches offer very high impedence at the terminals.
The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes the IDTQS3VH257 ideal for high performance communication applications.
The IDTQS3VH257 is characterized for operation from -40°C to +85°C.
