IDTQS3VH16861

Features: • N channel FET switches with no parasitic diode to Vcc − Isolation under power-off conditions − No DC path to Vcc or GND − 5V tolerant in OFF and ON state• 5V tolerant I/Os• Low RON - 4 typical• Flat RON characteristics over operating range̶...

product image

IDTQS3VH16861 Picture
See larger image
SeekIC No. : 004373475 Detail

IDTQS3VH16861: Features: • N channel FET switches with no parasitic diode to Vcc − Isolation under power-off conditions − No DC path to Vcc or GND − 5V tolerant in OFF and ON state• 5...

IDTQS3VH16861 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS3VH16861
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• N channel FET switches with no parasitic diode to Vcc
   − Isolation under power-off conditions
   − No DC path to Vcc or GND
   − 5V tolerant in OFF and ON state
• 5V tolerant I/Os
• Low RON - 4 typical
• Flat RON characteristics over operating range
• Rail-to-rail switching 0 - 5V
• Bidirectional dataflow with near-zero delay: no added ground bounce
• Excellent RON matching between channels
• Vcc operation: 2.3V to 3.6V
• High bandwidth - up to 500 MHz
• LVTTL-compatible control Inputs
• Undershoot Clamp Diodes on all switch and control Inputs
• Low I/O capacitance, 4pF typical
• Available in SSOP and TSSOP packages


Application

• Hot-swapping
• 10/100 Base-T, Ethernet LAN switch
• Low distortion analog switch
• Replaces mechanical relay
• ATM 25/155 switching


Pinout

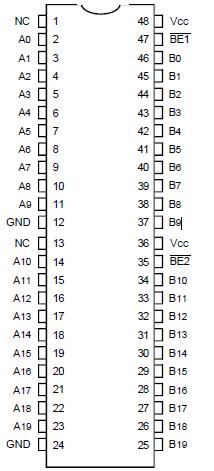

Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to 4.6
V
VTERM(3)
DC Switch Voltage VS
0.5 to 5.5
V
VTERM(3)
DC Input Voltage VIN
0.5 to 5.5
V
VAC
AC Input Voltage (pulse width 20ns)
3
V
IOUT
DC Output Current (max. current/pin)
120
mA
TSTG
Storage Temperature
65 to +15
°C

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC.




Description

The IDTQS3VH16861 HotSwitch with 20-bit flow-though pin out is a high bandwidth bus switch. The IDTQS3VH16861 has very low ON resistance, resulting in under 250ps propagation delay through the switch. The switches are controlled by active low enable (BEx) controls. In the ON state, the switches can pass signals up to 5V. In the OFF state, the switches offer very high impedence at the terminals.

The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes the IDTQS3VH16861 ideal for high performance communications applications.

The IDTQS3VH16861 is characterized for operation from -40°C to +85°C.
