IDTQS3VH16245

Features: • N channel FET switches with no parasitic diode to Vcc − Isolation under power-off conditions − No DC path to Vcc or GND − 5V tolerant in OFF and ON state• 5V tolerant I/Os• Low RON - 4Ω typical• Flat RON characteristics over operating ran...

product image

IDTQS3VH16245 Picture
See larger image
SeekIC No. : 004373473 Detail

IDTQS3VH16245: Features: • N channel FET switches with no parasitic diode to Vcc − Isolation under power-off conditions − No DC path to Vcc or GND − 5V tolerant in OFF and ON state• 5...

IDTQS3VH16245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS3VH16245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• N channel FET switches with no parasitic diode to Vcc
   − Isolation under power-off conditions
   − No DC path to Vcc or GND
   − 5V tolerant in OFF and ON state
• 5V tolerant I/Os
• Low RON - 4Ω typical
• Flat RON characteristics over operating range
• Rail-to-rail switching 0 - 5V
• Bidirectional dataflow with near-zero delay: no added groundbounce
• Excellent RON matching between channels
• Vcc operation: 2.3V to 3.6V
• High bandwidth - up to 500 MHz
• LVTTL-compatible control Inputs
• Undershoot Clamp Diodes on all switch and control Inputs
• Low I/O capacitance, 4pF typical
• Available in SSOP and TSSOP packages


Application

• Hot-swapping
• 10/100 Base-T, Ethernet LAN switch
• Low distortion analog switch
• Replaces mechanical relay
• ATM 25/155 switching






Pinout

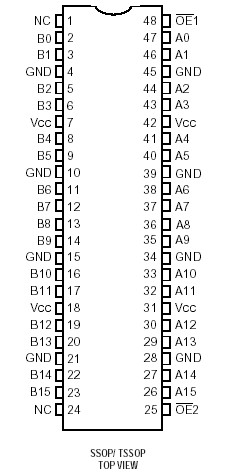

Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +4.6
V
VTERM(3)
DC Switch Voltage Vs
0.5 to +5.5
V
VTERM(3)
DC Input Voltage VIN
0.5 to +5.5
V
VAC
AC Input Voltage (pulse width 20ns)
3
V
IOUT
DC Output Current (max. sink current/pin)
120
mA
TSTG
Storage Temperature
65 to +150



Description

The IDTQS3VH16245 HotSwitch is a 16-bit high bandwidth bus switch. IDTQS3VH16245 has very low ON resistance, resulting in under 250pspropagation delay through the switch. The switches can be turned ON underthe control of the LVTTL-compatible Output Enable signals (OEx) for bidirectionaldata flow with no added delay or ground bounce. In the ON state, theswitches can pass signals up to 5V. In the OFF state, the switches offer veryhigh impedance at the terminals.

The combination of near-zero propagation delay, high OFF impedance, andover-voltage tolerance makes the IDTQS3VH16245 ideal for high performancecommunications applications.

The IDTQS3VH16245 is characterized for operation from -40 to +85.
