IDTQS3VH16212

• N channel FET switches with no parasitic diode to Vcc
   − Isolation under power-off conditions
   − No DC path to Vcc or GND
   − 5V tolerant in OFF and ON state
• 5V tolerant I/Os
• Low RON - 4Ω typical
• Flat RON characteristics over operating range
• Rail-to-rail switching 0 - 5V
• Bidirectional dataflow with near-zero delay: no added groundbounce
• Excellent RON matching between channels
• Vcc operation: 2.3V to 3.6V
• High bandwidth - up to 500 MHz
• LVTTL-compatible control Inputs
• Undershoot Clamp Diodes on all switch and control Inputs
• Low I/O capacitance, 4pF typical
• Available in SSOP and TSSOP packages

• Hot-swapping
• 10/100 Base-T, Ethernet LAN switch
• Low distortion analog switch
• Replaces mechanical relay
• ATM 25/155 switching

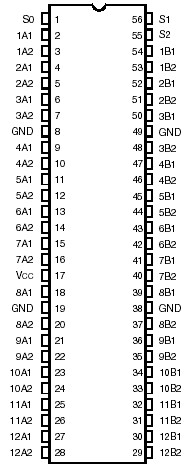

The IDTQS3VH16212 Bus Exchange HotSwitch with 24-bits is a highbandwidth bus switch. The IDTQS3VH16212 has very low ON resistance,resulting in under 250ps propagation delay through the switch. The deviceoperates as a 24-bit bus switch or a 12-bit bus exchanger, which providesdata exchanging between the four signal ports through the data-select (S₀- S₂) terminals. In the OFF and ON states, the switches are 5V-tolerant. Inthe OFF state, the switches offer very high impedence at the terminals.

The combination of near-zero propagation delay, high OFF impedance,and over-voltage tolerance makes the IDTQS3VH16212 ideal for high performancecommunications applications.

The IDTQS3VH16212 is characterized for operation from -40 to +85.
