IDTQS3VH16211

Features: * N channel FET switches with no parasitic diode to Vcc----- Isolation under power-off conditions----- No DC path to Vcc or GND----- 5V tolerant in OFF and ON state* 5V tolerant I/Os* Low RON - 4 typical* Flat RON characteristics over operating range* Rail-to-rail switching 0 - 5V* Bidir...

product image

IDTQS3VH16211 Picture
See larger image
SeekIC No. : 004373469 Detail

IDTQS3VH16211: Features: * N channel FET switches with no parasitic diode to Vcc----- Isolation under power-off conditions----- No DC path to Vcc or GND----- 5V tolerant in OFF and ON state* 5V tolerant I/Os* Low ...

IDTQS3VH16211 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS3VH16211
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* N channel FET switches with no parasitic diode to Vcc
----- Isolation under power-off conditions
----- No DC path to Vcc or GND
----- 5V tolerant in OFF and ON state
* 5V tolerant I/Os
* Low RON - 4 typical
* Flat RON characteristics over operating range
* Rail-to-rail switching 0 - 5V
* Bidirectional dataflow with near-zero delay: no added ground bounce
* Excellent RON matching between channels
* Vcc operation: 2.3V to 3.6V
* High bandwidth - up to 500 MHz
* LVTTL-compatible control Inputs
* Undershoot Clamp Diodes on all switch and control Inputs
* Low I/O capacitance, 4pF typical
* Available in SSOP and TSSOP packages


Application

* Hot-swapping
* 10/100 Base-T, Ethernet LAN switch
* Low distortion analog switch
* Replaces mechanical relay
* ATM 25/155 switching


Pinout

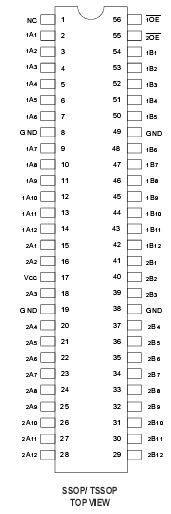

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) SupplyVoltage to Ground 0.5 to +4.6 V
VTERM(3) DC Switch Voltage VS 0.5 to +5.5 V
VTERM(3) DC Input Voltage VIN 0.5 to +5.5 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current (max. sink current/pin) 120 mA
TSTG Storage Temperature 65 to +150



Description

  The IDTQS3VH16211 HotSwitch is a 24-bit high bandwidth bus switch.  The IDTQS3VH16211 has very low ON resistance, resulting in under 250ps propagation delay through the switch.  This device operates as a 24-bit bus switch.  When 1OE is low, 1An is connected to 1Bn.  When 2OE is low, 2An is connected to 2Bn.  In the OFF and ON states, the switches are 5V-tolerant.In the OFF state, the switches offer very high impedance at the terminals.

  The combination of near-zero propagation delay, high OFF impedance,and over-voltage tolerance makes the IDTQS3VH16211 ideal for high perfor-mance communications applications.  It is also suitable for switching wide digital buses.

  The IDTQS3VH16211 is characterized for operation from -40°C to +85°C.
