Product Details

Description



Features:

• N channel FET switches with no parasitic diode to Vcc
   − Isolation under power-off conditions
   − No DC path to Vcc or GND
   − 5V tolerant in OFF and ON state
• 5V tolerant I/Os
• Low RON - 4 typical
• Flat RON characteristics over operating range
• Rail-to-rail switching 0 - 5V
• Bidirectional dataflow with near-zero delay: no added ground bounce
• Excellent RON matching between channels
• Vcc operation: 2.3V to 3.6V
• High bandwidth - up to 500 MHz
• LVTTL-compatible control Inputs
• Undershoot Clamp Diodes on all switch and control Inputs
• Low I/O capacitance, 4pF typical
• Available in SSOP and TSSOP packages


Application

• Hot-swapping
• 10/100 Base-T, Ethernet LAN switch
• Low distortion analog switch
• Replaces mechanical relay
• ATM 25/155 switching


Pinout

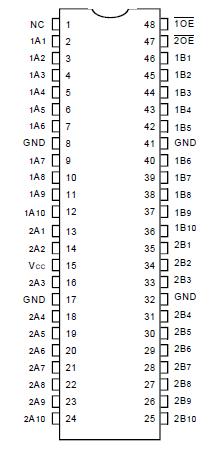

Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to 4.6
V
VTERM(3)
DC Switch Voltage VS
0.5 to 5.5
V
VTERM(3)
DC Input Voltage VIN
0.5 to 5.5
V
VAC
AC Input Voltage (pulse width 20ns)
3
V
IOUT
DC Output Current (max. current/pin)
120
mA
TSTG
Storage Temperature
65 to +15
°C

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC.




Description

The IDTQS3VH16210 HotSwitch with 20-bit flow-though pin is a high bandwidth bus switch. The IDTQS3VH16210 has very low ON resistance, resulting in under 250ps propagation delay through the switch. The switches are controlled by active low enable (xOE) controls. The IDTQS3VH16210 is organized as a dual 10-bit, 2-port bus switch with separate, xOE control inputs. In the OFF and ON states, the switches are 5V-tolerant. In the OFF state, the switches offer very high impedance at the terminals.

The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes the IDTQS3VH16210 ideal for high performance communications applications.

The IDTQS3VH16210 is characterized for operation from -40°C to +85°C.
