Features: * N channel FET switches with no parasitic diode to VCC Isolation under power-off conditions No DC path to VCC or GND 5V tolerant in OFF and ON state* 5V tolerant I/Os* Low RON - 4 typical* Flat RON characteristics over operating range* Rail-to-rail switching 0 - 5V* Bidirectional datafl...
IDTQS3VH125: Features: * N channel FET switches with no parasitic diode to VCC Isolation under power-off conditions No DC path to VCC or GND 5V tolerant in OFF and ON state* 5V tolerant I/Os* Low RON - 4 typical...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Description | Max | Unit |
VTERM(2) | SupplyVoltage to Ground | 0.5 to +4.6 | V |
VTERM(3) | DC Switch Voltage Vs | 0.5 to +5.5 | V |
VTERM(3) | DC Input Voltage VIN | 0.5 to +5.5 | V |
VAC | AC Input Voltage (pulse width 20ns) | 3 | V |
IOUT | DC Output Current (max. sink current/pin) | 120 | mA |
TSTG | Storage Temperature | 65 to +150 |

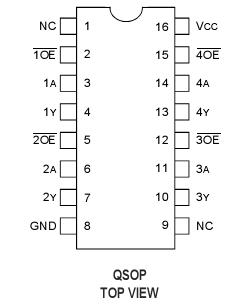

The IDTQS3VH125 is a high bandwidth, Quad bus switch. The IDTQS3VH125 has very low ON resistance, resulting in under 250ps propagation delay through the switch. The switches can be turned ON under the control of individual LVTTL-compatible active low Output Enable signals for bidirec-tional data flow with no added delay or ground bounce. In the ON state,the switches can pass signals up to 5V. In the OFF state, the switches offer very high impedence at the terminals.
The combination of near-zero propagation delay, high OFF impedance,and over-voltage tolerance makes the IDTQS3VH125 ideal for high perfor-mance communications applications.
The IDTQS3VH125 is characterized for operation from -40 to +85.
