IDTQS3R861

Features: • Enhanced N channel FET with no inherent diode to Vcc• 2.5 bidirectional switches connect inputs to outputs• Zero propagation delay, zero ground bounce• Undershoot clamp diodes on all switch and control inputs• Available in SOIC and QSOP packagesApplication...

product image

IDTQS3R861 Picture
See larger image
SeekIC No. : 004373463 Detail

IDTQS3R861: Features: • Enhanced N channel FET with no inherent diode to Vcc• 2.5 bidirectional switches connect inputs to outputs• Zero propagation delay, zero ground bounce• Undershoot...

IDTQS3R861 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS3R861
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Enhanced N channel FET with no inherent diode to Vcc
• 2.5 bidirectional switches connect inputs to outputs
• Zero propagation delay, zero ground bounce
• Undershoot clamp diodes on all switch and control inputs
• Available in SOIC and QSOP packages


Application

• Hot-swapping, hot-docking (low resistance for PCI and Compact PCI applications)
• Voltage translation (5V to 3.3V)
• Power Conservation
• Capacitance reduction and isloation
• Bus Isolation
• Clock Gating


Pinout

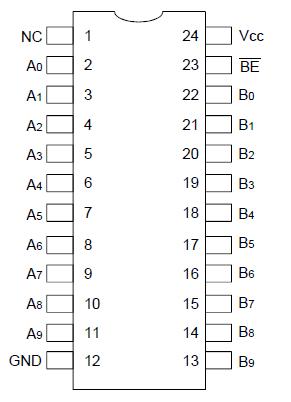

Connection Diagram


Specifications

Symbol

Description

Max.
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +7
V
VTERM(3)
DC Switch Voltage VS
0.5 to +7
V
VTERM(3)
DC Input Voltage VIN
0.5 to +7
V
VAC
AC Input Voltage (pulse width20ns)
-3
V
IOUT
DC Output Current
120
mA
PMAX
Maximum Power Dissipation (TA = 85°C)
0.5
W

TSTG
Storage Temperature
65 to +150
°C

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC .




Description

The IDTQS3R861 provides a set of ten high-speed CMOS TTL-compatible bus switches. The very low ON resistance (2.5) of the QS3R861 allows inputs to be connected without adding propagation delay and without generating additional ground bounce noise. The Bus Enable (BE) signal turns the switches on.

The low ON resistance of the IDTQS3R861 makes it ideal for PCI hotplugging or hot-swapping applications.

The IDTQS3R861 is characterized for operation at -40°C to +85°C.
