IDTQS3R800

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. Vcc Terminals.
3. All terminals except Vcc.

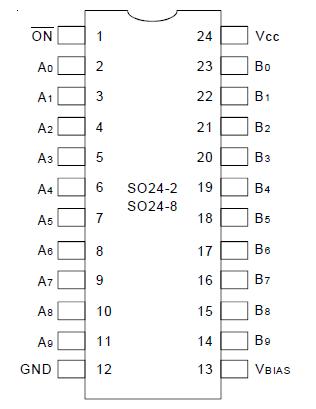

The IDTQS3R800 is a 10-bit high-speed CMOS bus switch controlled by a single enable (ON) input. When ONis low, the switch is on and port A is connected to port B. When ON is high, the switch between port A and port B is open and port B is precharged to the bias voltage. The low ONresistance (2.5) of the QS3R800 allows inputs to be connected to outputs without adding propagation delay and without generating additional noise. The IDTQS3R800 also precharges the B port to a user-selectable bias voltage to  minimize live-insertion noise, which is useful in VME bus applications.

The IDTQS3R800 is characterized for operation at -40°C to +85°C.
