IDTQS3R384

Features: * Enhanced N channel FET with no inherent diode to Vcc* 2.5 bidirectional switches connect inputs to outputs* Zero propagation delay, zero ground bounce* Undershoot clamp diodes on all switch and control inputs* Two enables control five bits each* Available in QSOP packageApplication* Ho...

product image

IDTQS3R384 Picture
See larger image
SeekIC No. : 004373461 Detail

IDTQS3R384: Features: * Enhanced N channel FET with no inherent diode to Vcc* 2.5 bidirectional switches connect inputs to outputs* Zero propagation delay, zero ground bounce* Undershoot clamp diodes on all swi...

IDTQS3R384 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS3R384
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Enhanced N channel FET with no inherent diode to Vcc
* 2.5 bidirectional switches connect inputs to outputs
* Zero propagation delay, zero ground bounce
* Undershoot clamp diodes on all switch and control inputs
* Two enables control five bits each
* Available in QSOP package


Application

* Hot-swapping, hot-docking (low resistance for PCI and Compact PCI applications)
* Voltage translation (5V to 3.3V)
* Power Conservation
* Capacitance reduction and isloation
* Bus Isolation
* Clock Gating


Pinout

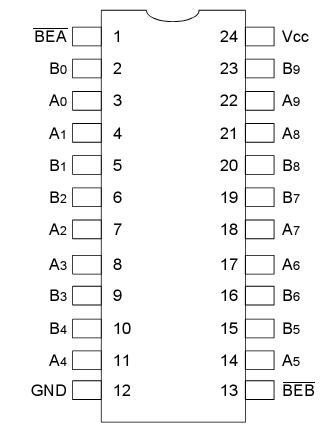

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) Supply Voltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage VS 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current 120 mA
 PMAX Maximum Power Dissipation (TA = 85°C) 0.5 W
TSTG Storage Temperature 65 to +150



Description

  The IDTQS3R384 provides a set of ten high-speed CMOS TTL-compatible bus switches.  Two banks of 5 switches are controlled by independent Bus Enable ( BE) signals.  The very low RON resistance (2.5) of the IDTQS3R384 allows inputs to be connected without adding propagation delay and without generating additional ground bounce noise.

  The low ON resistance of the QS3R384 makes it ideal for PCI hot-plugging or hot-swapping applications.

  The IDTQS3R384 is characterized for operation at -40°C to +85°C.
