IDTQS3R245

Features: • Enhanced N channel FET with no inherent diode to Vcc• 5Ω bidirectional switches connect inputs to outputs• Pin compatible with the 74F245, 74FCT245, and 74FCT245T• Zero propagation delay, zero ground bounce• Undershoot clamp diodes on all switch and ...

product image

IDTQS3R245 Picture
See larger image
SeekIC No. : 004373460 Detail

IDTQS3R245: Features: • Enhanced N channel FET with no inherent diode to Vcc• 5Ω bidirectional switches connect inputs to outputs• Pin compatible with the 74F245, 74FCT245, and 74FCT245T...

IDTQS3R245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS3R245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Enhanced N channel FET with no inherent diode to Vcc
• 5Ω bidirectional switches connect inputs to outputs
• Pin compatible with the 74F245, 74FCT245, and 74FCT245T
• Zero propagation delay, zero ground bounce
• Undershoot clamp diodes on all switch and control inputs
• TTL-compatible control inputs
• Available in SOIC and QSOP packages


Application

• Hot-swapping and hot-docking (low resistance for PCI andCompact PCI applications)
• Bus switching and isolation
• Voltage translation (5V to 3.3V)
• Capacitance reduction and isolation
• Power conservation
• Logic replacement (data processing)
• Clock gating




Pinout

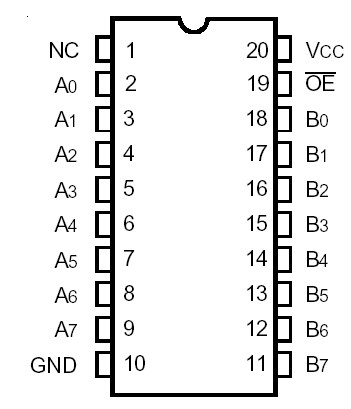

Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +7
V
VTERM(3)
DC Switch Voltage Vs
0.5 to +7
V
VTERM(3)
DC Input Voltage VIN
0.5 to +7
V
VAC
AC Input Voltage (pulse width 20ns)
3
V
IOUT
DC Output Current
120
mA
PMAX
Maximum Power Dissipation
0.5
W
TSTG
Storage Temperature
65 to +150



Description

The IDTQS3R245 provides a set of eight high-speed CMOS TTL-compatiblebus switches in a pinout compatible with 74FCT245, 74F245, 74ALS/AS/LS245 8-bit transceivers. The low ON resistance of the IDTQS3R245 allowsinputs to be connected to outputs without adding propagation delay andwithout generating additional ground bounce noise. The Output Enable (OE)signal turns the switches on similar to the OE signal of the 74'245. The lowON resistance of QS3R245 makes it ideal for PCI hot docking applications.

QuickSwitch devices provide an order of magnitude faster speed thanconventional logic devices.

The IDTQS3R245 is characterized for operation at -40 to +85.
