Product Details

Description



Features:

• Enhanced N channel FET with no inherent diode to Vcc
• 2.5 bidirectional switches connect inputs to outputs
• Zero propagation delay, zero ground bounce
• Ultra low power with 0.2A typical Icc
• Undershoot clamp diodes on all switch and control pins
• Two enables control five bits each
• Available in SOIC, QSOP, and TSSOP packages


Application

• Hot-swapping and hot-docking (low resistance for PCI and Compact PCI applications)
• Voltage translation (5V to 3.3V)
• Power Conservation
• Capacitance reduction and isloation
• Bus Isolation
• Clock Gating

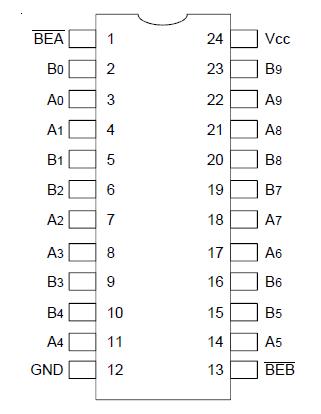

Pinout

Connection Diagram


Specifications

Symbol

Description

Max.
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +7
V
VTERM(3)
DC Switch Voltage VS
0.5 to +7
V
VTERM(3)
DC Input Voltage VIN
0.5 to +7
V
VAC
AC Input Voltage (pulse width20ns)
-3
V
IOUT
DC Output Current
120
mA
PMAX
Maximum Power Dissipation (TA = 85°C)
0.5
W

TSTG
Storage Temperature
65 to +150
°C

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC .




Description

The IDTQS3LR384 provides a set of ten high-speed CMOS TTL-compatible bus switches. Two banks of 5 switches are controlled by independent Bus Enable (BE) signals. The very low RON resistance (2.5) of the IDTQS3LR384 allows inputs to be connected without adding propagation delay and without generating additional ground bounce noise.

The low ON resistance of the QS3LR384 makes it ideal for PCI hotplugging or hot-swapping applications.

The IDTQS3LR384 is characterized for operation at -40°C to +85°C.
