IDTQS3L384

Features: *Enhanced N channel FET with no inherent diode to Vcc*5 bidirectional switches connect inputs to outputs*Zero propagation delay, zero added ground bounce*Ultra low power with 0.2A typical Icc*Undershoot clamp diodes on all switch and control inputs*Two enables control five bits each*Avai...

product image

IDTQS3L384 Picture
See larger image
SeekIC No. : 004373458 Detail

IDTQS3L384: Features: *Enhanced N channel FET with no inherent diode to Vcc*5 bidirectional switches connect inputs to outputs*Zero propagation delay, zero added ground bounce*Ultra low power with 0.2A typical ...

IDTQS3L384 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS3L384
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Enhanced N channel FET with no inherent diode to Vcc
*5 bidirectional switches connect inputs to outputs
*Zero propagation delay, zero added ground bounce
*Ultra low power with 0.2A typical Icc
*Undershoot clamp diodes on all switch and control inputs
*Two enables control five bits each
*Available in SOIC, QSOP, and TSSOP packages


Application

Hot-swapping, hot-docking
Voltage translation (5V to 3.3V)
Power Conservation
Capacitance reduction and isloation
Bus Isolation
Clock Gating


Pinout

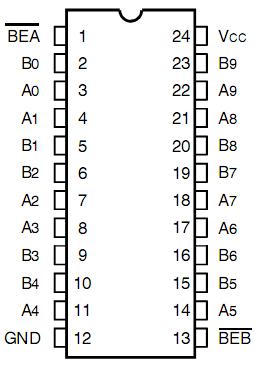

Connection Diagram


Specifications

Symbol

Description

Max

Unit

VTERM(2) Supply Voltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage VS 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current 120 mA
PMAX Maximum Power Dissipation (TA = 85°C) 0.5 W
 TSTG  Storage Temperature  65 to +150



Description

    The IDTQS3L384 provides a set of ten high-speed CMOS TTL-compatible bus switches. The low ON resistance of the IDTQS3L384 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The Bus Enable (BE) signals turn the switches on. Two bus enable signals are provided, one for each of the upper and lower five bits of the two 10-bit buses.

    The IDTQS3L384 is characterized for operation at -40 to +85
