Product Details

Description



Features:

• Enhanced N channel FET with no inherent diode to Vcc
• 5 bidirectional switches connect inputs to outputs
• Zero propagation delay, zero added ground bounce
• Ultra low power with 0.2A typical Icc
• Undershoot clamp diodes on all switch and control inputs
• Bus exchange allows nibble swap
• Available in QSOP and SOIC packages



Application

• Hot-swapping, hot-docking
• Voltage translation (5V to 3.3V)
• Resource sharing
• Crossbar switching

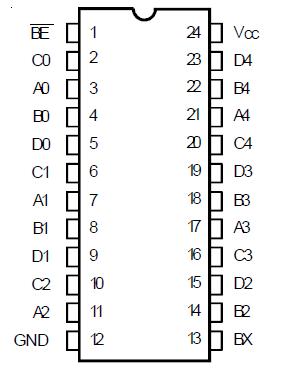

Pinout

  Connection Diagram


Specifications

Symbol

Description

Max.

Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +7
V
VTERM(3)
DC Switch Voltage VS
0.5 to +7
V
VTERM(3)
DC Input Voltage VIN
0.5 to +7
V
VAC
AC Input Voltage (pulse width20ns)
-3
V
IOUT
DC Output Current
120
mA
PMAX
Maximum Power Dissipation (TA = 85°C)
0.5
W

TSTG

Storage Temperature
65 to +150
°C

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC .




Description

The IDTQS3L383 provides ten high-speed CMOS TTL-compatible bus switches. The low ON resistance of the IDTQS3L383 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The Bus Enable (BE) signal turns the switches on. The Bus Exchange (BX) signal provides nibble swap of the AB and CD pairs of signals. This exchange configuration allows byte swapping of buses in systems. It can also be used as a 5-wide 2-to-1 multiplexer and to create low delay barrel shifters, etc.

The IDTQS3L383 is characterized for operation at -40°C to +85°C.
