Product Details

Description

Features:

* Enhanced N channel FET with no inherent diode to Vcc
*5 bidirectional switches connect inputs to outputs
* Zero propagation delay, zero ground bounce
* Undershoot clamp diodes on all switch and control inputs
* Available in SOIC, QSOP, and TSSOP packages

Application

* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Power Conservation
* Capacitance reduction and isloation
* Bus Isolation
* Clock Gating

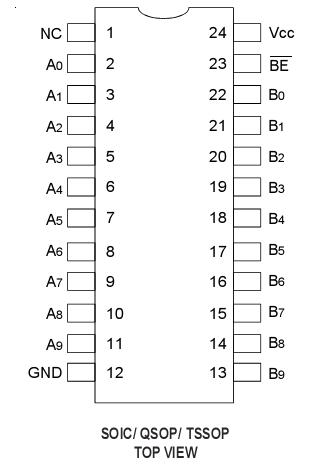

Pinout

Specifications

Symbol	Description	Max	Unit
VTERM⁽²⁾	Supply Voltage to Ground	0.5 to +7	V
VTERM⁽³⁾	DC Switch Voltage VS	0.5 to +7	V
VTERM⁽³⁾	DC Input Voltage VIN	0.5 to +7	V
V_AC	AC Input Voltage (pulse width 20ns)	3	V
I_OUT	DC Output Current	120	mA
P_MAX	Maximum Power Dissipation	0.5	W
T_STG	Storage Temperature	65 to +150

Description

The IDTQS3861 provides a set of ten high-speed CMOS TTL-compatible bus switches. The low ON resistance (5) of the IDTQS3861 allows inputs to be connected without adding propagation delay and without generating additional ground bounce noise. The Bus Enable (BE) signal turns the switches on.

The IDTQS3861 is characterized for operation at -40°C to +85°C.
