IDTQS34XVH2245

Features: • N channel FET switches with no parasitic diode to VCC Isolation under power-off conditions No DC path to VCC or GND 5V tolerant in OFF and ON state• 5V tolerant I/Os• Flat RON characteristics over operating range• Rail-to-rail switching 0 - 5V• Bidirection...

product image

IDTQS34XVH2245 Picture
See larger image
SeekIC No. : 004373453 Detail

IDTQS34XVH2245: Features: • N channel FET switches with no parasitic diode to VCC Isolation under power-off conditions No DC path to VCC or GND 5V tolerant in OFF and ON state• 5V tolerant I/Os• F...

IDTQS34XVH2245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS34XVH2245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• N channel FET switches with no parasitic diode to VCC
Isolation under power-off conditions
No DC path to VCC or GND
5V tolerant in OFF and ON state
• 5V tolerant I/Os
• Flat RON characteristics over operating range
• Rail-to-rail switching 0 - 5V
• Bidirectional dataflow with near-zero delay: no added ground bounce
• Excellent RON matching between channels
• VCC operation: 2.3V to 3.6V
• High bandwidth
• LVTTL-compatible control Inputs
• Undershoot Clamp Diodes on all switch and control Inputs
• Low I/O capacitance, 4pF typical
• 25 resistors for low noise and line matching
• Available in 80-pin QVSOP package


Application

• Hot-swapping
• Low distortion analog switch
• Replaces mechanical relay
• ATM 25/155 switching


Pinout

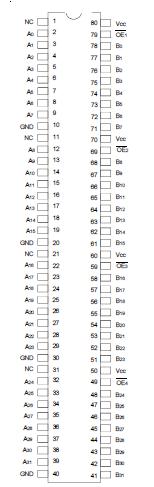

Connection Diagram


Specifications

Symbol

Description

Max.
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +4.6
V
VTERM(3)
DC Switch Voltage VS
0.5 to +5.5
V
VTERM(3)
DC Input Voltage VIN
0.5 to +5.5
V
VAC
AC Input Voltage (pulse width20ns)
-3
V
IOUT
DC Output Current (max. sink current/pin)
120
mA

TSTG
Storage Temperature
65 to +150
°C

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC .




Description

The IDTQS34XVH2245 is a high bandwidth, 32-bit bus switch. The IDTQS34XVH2245 with 25 resistance and 1.35ns propagation delay is ideal for line matching and low noise environments. The switches can be turned ON under the control of individual LVTTL-compatible Output Enable (OEx) signals for bidirectional data flow with no added delay or ground bounce. In the ON state, the switches can pass signals up to 5V. In the OFF state, the switches offer very high impedence at the terminals.

The combination of small propagation delay, high OFF impedance, and over-voltage tolerance makes the IDTQS34XVH2245 ideal for high performance communications applications.

The IDTQS34XVH2245 is characterized for operation from -40°C to +85°C.
