Features: · Enhanced N channel FET with no inherent diode to Vcc· Bidirectional signal flow· Flow-through pinout· Zero propagation delay, zero ground bounce·16 banks of 2:1 Mux/Demux· Port select synchronous to the clock· Clock enable and Asynchronous enable· Undershoot clamp diodes on all switch ...
IDTQS34XS257: Features: · Enhanced N channel FET with no inherent diode to Vcc· Bidirectional signal flow· Flow-through pinout· Zero propagation delay, zero ground bounce·16 banks of 2:1 Mux/Demux· Port select sy...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol |
Description |
Max |
Unit |
VTERM(2) |
Supply Voltage to Ground |
0.5 to +7 |
V |
VTERM(3) |
DC Switch Voltage VS |
0.5 to +7 |
V |
VTERM(3) |
DC Input Voltage VIN |
0.5 to +7 |
V |
VAC |
AC Input Voltage (pulse width 20ns) |
3 |
V |
IOUT |
DC Output Current |
120 |
mA |
PMAX |
MaximumPower Dissipation (TA = 85°C) |
0.5 |
W |
TSTG |
Storage Temperature |
65 to +150 |
°C |

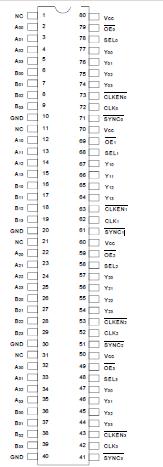

The IDTQS34XS257 is a high-speed CMOS quad 32:16 multiplexer/ demultiplexer. It is organized as four independent quad 2:1 mux/demux blocks. Port selection and connection, controlled by SEL signals, can be either asynchronous or synchronous. In the synchronous mode, the A or B port to Y port connection is updated on the rising edge of the input clock CLK. Once the port-to-port connection is made, data flow can be bidirectional with a typical 250ps propagation delay through the switch. Clock Enable, overriding Asynchronous Enable, and Asynchronous Select controls provide additional design flexibility.
Synchronous controls ease timing constraints in many high speed data mux/demux applications, such as bank interleaving. The IDTQS34XS257 is available in the space-saving, 80-pin dual-in-line MillipaQ package.
The IDTQS34XS257 is characterized for operation at -40°C to +85°C.
