IDTQS34XR800

Features: • 2.5 bidirectional switches connect inputs to outputs• Zero propagation delay, zero ground bounce• Undershoot clamp diodes on all switch and control inputs• Outputs precharge voltage to minimize signal distortion during live insertion• Flow-through pinout f...

product image

IDTQS34XR800 Picture
See larger image
SeekIC No. : 004373449 Detail

IDTQS34XR800: Features: • 2.5 bidirectional switches connect inputs to outputs• Zero propagation delay, zero ground bounce• Undershoot clamp diodes on all switch and control inputs• Output...

IDTQS34XR800 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS34XR800
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2.5 bidirectional switches connect inputs to outputs
• Zero propagation delay, zero ground bounce
• Undershoot clamp diodes on all switch and control inputs
• Outputs precharge voltage to minimize signal distortion during live insertion
• Flow-through pinout for easy layout
• TTL-compatible input and output levels
• Available in 80-pin Millipaq package


Application

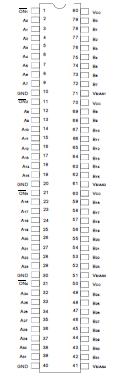

Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +7
V
VTERM(3)
DC Switch Voltage VS
0.5 to +7
V
VTERM(3)
DC Input Voltage VIN
0.5 to +7
V
VAC
AC Input Voltage (pulse width 20ns)
3
V
IOUT
DC Output Current
120
mA
PMAX
MaximumPower Dissipation (TA = 85°C)
0.5
W
TSTG
Storage Temperature
65 to +150
°C
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. Vcc terminals.
3. All terminals except Vcc.


Description

The IDTQS34XR800 is a 32-bit high-speed CMOS bus switch controlled by a four enable (ONx) input in a flow-through pinout. When ONx is low, the switch is on and port A is connected to port B. When ONx is high, the switch between port A and port B is open and port B is precharged to the bias voltage. The low ON resistance (2.5) of the IDTQS34XR800 allows inputs to be connected to outputs without adding propagation delay and without generating additional noise. The IDTQS34XR800 also precharges the B port to a user-selectable bias voltage to minimize live-insertion noise, which is useful in VME bus applications.
