IDTQS34XR245

Features: * Enhanced N channel FET with no inherent diode to Vcc* 2.5 bidirectional switches connect inputs to outputs* Zero propagation delay, zero ground bounce* QS34XR245Q3 is a 32-bit version of QS3R245* Flow-through pinout for easy layout* Undershoot clamp diodes on all switch and control inp...

product image

IDTQS34XR245 Picture
See larger image
SeekIC No. : 004373448 Detail

IDTQS34XR245: Features: * Enhanced N channel FET with no inherent diode to Vcc* 2.5 bidirectional switches connect inputs to outputs* Zero propagation delay, zero ground bounce* QS34XR245Q3 is a 32-bit version of...

IDTQS34XR245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS34XR245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Enhanced N channel FET with no inherent diode to Vcc
* 2.5 bidirectional switches connect inputs to outputs
* Zero propagation delay, zero ground bounce
* QS34XR245Q3 is a 32-bit version of QS3R245
* Flow-through pinout for easy layout
* Undershoot clamp diodes on all switch and control inputs
* TTL-compatible control inputs
* Available in 80-pin Millipaq package


Application

* Low resistance applications
* Hot-swapping, hot-docking (low resistance for PCI and Compact PCI applications)
* Bus switching, isolation
* Logic replacement (data processing)
* Capacitance reduction and isolation
* Power conservation
* Clock gating
* Voltage translation (5V to 3.3V)


Pinout

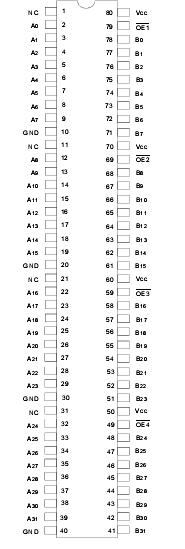

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) SupplyVoltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage VS 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current 120 mA
PMAX Maximum Power Dissipation (TA = 85) 0.5 W
TSTG Storage Temperature 65 to +150



Description

  The IDTQS34XR245 is a  member of the MultiWidthTM family of QuickSwitch devices and provides a set of 32 high-speed low resistance CMOS compatible bus switches in a flow-through pin out.

  This device is available in the MillipaQ package, the worlds first small outline 32-bit solution. The low on-resistance of the IDTQS34XR245 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. When Output Enable (OEx) is low, the switches are turned on, connecting bus A to bus B. When OEx is high, the switches are turned off.

  The IDTQS34XR245 is ideally suited for 32/64 bit applications where board space is at a premium. The low resistance of IDTQS34XR245 makes it ideal for PCI hot docking application.

  QuickSwitch devices provide an order of magnitude faster speed than conventional logic devices.
