IDTQS34X245

Features: * Enhanced N channel FET with no inherent diode to Vcc* Bidirectional switches connect inputs to outputs* Zero propagation delay, zero ground bounce* QS34X245 is 32-bit version of QS3245* Flow-through pinout for easy layout* Undershoot clamp diodes on all switch and control inputs* TTL-c...

product image

IDTQS34X245 Picture
See larger image
SeekIC No. : 004373446 Detail

IDTQS34X245: Features: * Enhanced N channel FET with no inherent diode to Vcc* Bidirectional switches connect inputs to outputs* Zero propagation delay, zero ground bounce* QS34X245 is 32-bit version of QS3245* ...

IDTQS34X245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS34X245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Enhanced N channel FET with no inherent diode to Vcc
* Bidirectional switches connect inputs to outputs
* Zero propagation delay, zero ground bounce
* QS34X245 is 32-bit version of QS3245
* Flow-through pinout for easy layout
* Undershoot clamp diodes on all switch and control inputs
* TTL-compatible control inputs
* Available in 80-pin MilliPaQTM package


Application

* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Bus switching and isolation
* Power conservation
* Logic replacement (data processing)
* Capacitance isolation
* Clock gating


Pinout

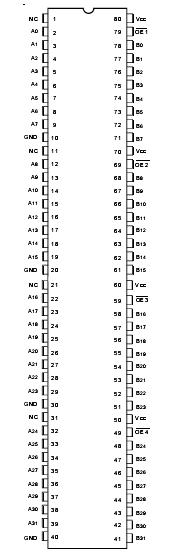

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) SupplyVoltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage VS 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current 120 mA
PMAX Maximum Power Dissipation (TA =70) 1.4 W
TSTG Storage Temperature 65 to +150



Description

   The IDTQS34X245 is a member of the MultiWidthTM  family of QuickSwitch devices and provides a set of 32 high-speed CMOS compatible bus switches in a flow-through pinout. This device is available in the MilliPaQ package,the world's first small outline 32-bit solution.  The low ON-resistance of the QS34X245 allows inputs to be connected to outputs without adding propa-gation delay and without generating additional ground bounce noise. When Output Enable (OEn) is low, the switches are turned on, connecting bus A to bus B.  When OEn is high, the switches are turned off. This device is ideally suited for 32/64 bit applications where board space is at a premium.

  QuickSwitch devices provide speeds an order of magnitude faster  than conventional logic devices.

  The IDTQS34X245 is characterized for operation at -40°C to +85°C.
