IDTQS33X253

Features: *Enhanced N channel FET with no inherent diode to Vcc*Bidirectional switches connect inputs to outputs*24:6 Mux/Demux switches*Zero propagation delay, zero ground bounce*Individual controls for each bank*Undershoot clamp diodes on all switch and control pins*TTL-compatible control inputs...

product image

IDTQS33X253 Picture
See larger image
SeekIC No. : 004373444 Detail

IDTQS33X253: Features: *Enhanced N channel FET with no inherent diode to Vcc*Bidirectional switches connect inputs to outputs*24:6 Mux/Demux switches*Zero propagation delay, zero ground bounce*Individual control...

IDTQS33X253 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS33X253
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Enhanced N channel FET with no inherent diode to Vcc
*Bidirectional switches connect inputs to outputs
*24:6 Mux/Demux switches
*Zero propagation delay, zero ground bounce
*Individual controls for each bank
*Undershoot clamp diodes on all switch and control pins
*TTL-compatible control inputs
*Available in 48-pin QVSOP Package




Application

Logic replacment
Video, audio, graphics switching, muxing
Hot-swapping, hot-docking
Voltage translation (5V to 3.3V)


Pinout

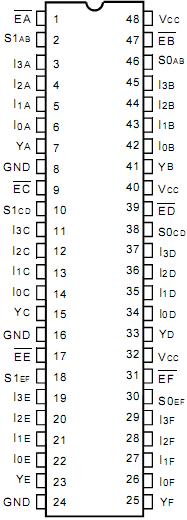

Connection Diagram


Specifications

Symbol

Description

Max

Unit

VTERM(2) Supply Voltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage VS 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current 120 mA
PMAX Maximum Power Dissipation (TA = 85°C) 5 W
 TSTG  Storage Temperature  65 to +150



Description

    The IDTQS33X253 is a high-speed CMOS 24:6 (3, dual 4:1) multiplexer/demultiplexer. The IDTQS33X253 is a member of the MultiWidth™ family and is functionally compatible to three of the QuickSwitch version of the  74F253, 74FCT253, and the 74ALS/AS/LS253 Dual 4:1 multiplexers. The low ON resistance of the QS33X253 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. TTL compatible control circuitry with "Break-before-make" feature avoids bus contention on the demux side.  This part is ideal for video switching and four way memory bank interleaving applications.

    Mux/Demux devices provide an order of magnitude faster speed than equivalent logic devices.

    The IDTQS33X253 is characterized for operation at -40 to +85
