IDTQS3390: Features: * Enhanced N channel FET with no inherent diode to Vcc* 16:8 multiplexer function with zero delay*5 bidirectional switches connect inputs to outputs* Low power CMOS proprietary technology*...

IDTQS3390 Data Sheet

Get Latest Price

Part Number:: IDTQS3390
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/3/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

IDTQS3125 evaluate
Features: * Enhanced N channel FET with no inherent diode to Vcc* Pin compatible with the 74'125 f...
IDTQS3125QG evaluate
US $.13 - .39 / Piece

IC BUS SWITCH QUAD 16QSOP
IDTQS3125QG8 evaluate
US $.17 - .43 / Piece

IC BUS SWITCH QUAD CMOS 16-QSOP

Product Details

Description

Features:

* Enhanced N channel FET with no inherent diode to Vcc
* 16:8 multiplexer function with zero delay
*5 bidirectional switches connect inputs to outputs
* Low power CMOS proprietary technology
* Undershoot clamp diodes on all switch and control inputs
* Direct bidirectional connection for mux, demux
* Available in SOIC and QSOP packages

Application

* Video, audio, graphics switching, muxing
* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)

Pinout

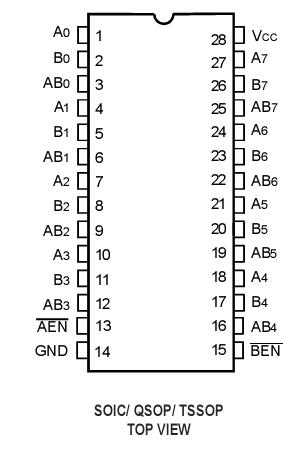

Connection Diagram

Specifications

Symbol	Description	Max	Unit
VTERM⁽²⁾	Supply Voltage to Ground	0.5 to +7	V
VTERM⁽³⁾	DC Switch Voltage V_S	0.5 to +7	V
VTERM⁽³⁾	DC Input Voltage V_IN	0.5 to +7	V
V_AC	AC Input Voltage (pulse width 20ns)	3	V
I_OUT	DC Output Current	120	mA
P_MAX	Maximum Power Dissipation (T_A = 85°C)	0.5	W
T_STG	Storage Temperature	65 to +150	°C

Description

The IDTQS3390 provides a 16:8 multiplexer logic switch. The low ON resistance (5) of the QS3390 allows inputs to be connected to the outputs without adding propagation delay and without generating additional ground bounce noise.

Mux/Demux devices provide an order of magnitude faster speed than equivalent logic devices.

The IDTQS3390 is characterized for operation at -40°C to +85°C.
