Features:

• Enhanced N channel FET with no inherent diode to Vcc
• 5 bidirectional switches connect inputs to outputs
• Active termination drives bus pins to rails when switches are off
• Zero propagation delay, zero added ground bounce
• Undershoot clamp diodes on all switch and control inputs
• Bus exchange allows nibble swap
• TTL-compatible input and output levels
• Bus-hold eliminates floating bus lines and reduces static power consumption
• Available in QSOP package


Application

• Resource sharing
• Crossbar switching
• Last value latch (graphics and DSP)


Pinout

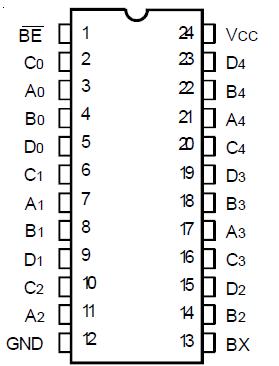

Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +7
V
VTERM(3)
DC Switch Voltage VS
0.5 to +7
V
VTERM(3)
DC Input Voltage VIN
0.5 to +7
V
VAC
AC Input Voltage (pulse width 20ns)
3
V
IOUT
DC Output Current
120
mA
PMAX
MaximumPower Dissipation (TA = 85°C)
0.5
W
TSTG
Storage Temperature
65 to +150
°C
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. Vcc terminals.
3. All terminals except Vcc.


Description

The IDTQS3388 provides ten high-speed CMOS TTL-compatible bus switches with active terminators on the bus switch I/O pins. The low ON resistance (5) of the 3388 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. When the switches are turned off, a low drive active terminator circuit drives the disconnected pins to VCC or ground, away from the TTL threshold. This prevents undriven buses from floating. The Bus Enable (BE) signal turns the switches on. The Bus Exchange (BX) signal provides nibble swap of the AB and CD pairs of signals. This exchange configuration allows byte swapping of buses in systems. It can also be used as a five-wide 2-to-1 multiplexer and to create low delay barrel shifters, etc.

The IDTQS3388 is characterized for operation at -40°C to +85°C.
