IDTQS3384

Features: • Enhanced N channel FET with no inherent diode to Vcc• 5Ω bidirectional switches connect inputs to outputs• Zero propagation delay, zero added ground bounce• Undershoot clamp diodes on all switch and control inputs• Two enables control five bits each&...

product image

IDTQS3384 Picture
See larger image
SeekIC No. : 004373440 Detail

IDTQS3384: Features: • Enhanced N channel FET with no inherent diode to Vcc• 5Ω bidirectional switches connect inputs to outputs• Zero propagation delay, zero added ground bounce•...

IDTQS3384 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS3384
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Enhanced N channel FET with no inherent diode to Vcc
• 5Ω bidirectional switches connect inputs to outputs
• Zero propagation delay, zero added ground bounce
• Undershoot clamp diodes on all switch and control inputs
• Two enables control five bits each
• Available in SOIC, QSOP, and TSSOP packages


Application

• Hot-swapping, hot-docking
• Voltage translation (5V to 3.3V)
• Power Conservation
• Capacitance reduction and isloation
• Bus Isolation
• Clock Gating



Pinout

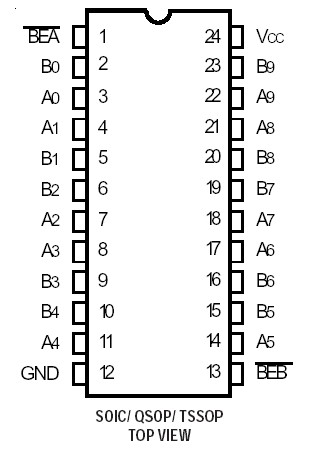

Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +7
V
VTERM(3)
DC Switch Voltage Vs
0.5 to +7
V
VTERM(3)
DC Input Voltage VIN
0.5 to +7
V
VAC
AC Input Voltage (pulse width 20ns)
3
V
IOUT
DC Output Current
120
mA
PMAX
Maximum Power Dissipation(TA = 85)
0.5
W
TSTG
Storage Temperature
65 to +150



Description

The IDTQS3384 provides a set of ten high-speed CMOS, TTL-compatiblebus switches. The low ON resistance of IDTQS3384 allows inputs to beconnected to outputs without adding propagation delay and without generatingadditional ground bounce. Two banks of 5 switches are controlled byindependent Bus Enable (BE ) signals.

The IDTQS3384 is characterized for operation at -40 to +85.
