Product Details

Description

Features:

* Enhanced N channel FET with no inherent diode to Vcc
*5 bidirectional switches connect inputs to outputs
* Zero propagation delay, zero added ground bounce
* Undershoot clamp diodes on all switch and control inputs
* Bus exchange allows nibble swap
* Available in QSOP and SOIC packages

Application

* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Resource sharing
* Crossbar switching

Pinout

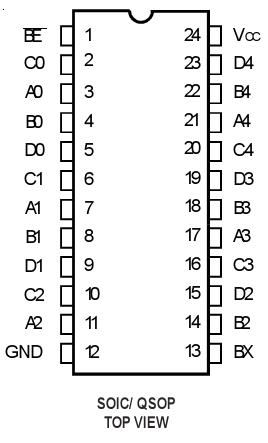

Connection Diagram

Specifications

Symbol	Description	Max	Unit
VTERM⁽²⁾	SupplyVoltage to Ground	0.5 to +7	V
VTERM⁽³⁾	DC Switch Voltage V_S	0.5 to +7	V
VTERM⁽³⁾	DC Input Voltage V_IN	0.5 to +7	V
V_AC	AC Input Voltage (pulse width 20ns)	3	V
I_OUT	DC Output Current	120	mA
P_MAX	Maximum Power Dissipation (TA = 85)	0.5	W
T_STG	Storage Temperature	65 to +150

Description

The IDTQS3383 provides ten high-speed CMOS TTL-compatible bus switches. The low ON resistance of the IDTQS3383 allows inputs to be connected to outputs without adding propagation delay and without gener-ating additional ground bounce noise. The Bus Enable (BE) signal turns the switches on. The Bus Exchange (BX) signal provides nibble swap of the AB and CD pairs of signals. This exchange configuration allows byte swapping of buses in systems. It can also be used as a 5-wide 2-to-1 multiplexer and to create low delay barrel shifters, etc.

The IDTQS3383 is characterized for operation at -40°C to +85°C.
