IDTQS3306A

Features: • Enhanced N channel FET with no inherent diode to Vcc• Very low ON resistance (3 typical)• Zero propagation delay, zero added ground bounce• Fast turn-on/turn-off time• Undershoot clamp diodes on all switch and control inputs• Available in SOIC packag...

product image

IDTQS3306A Picture
See larger image
SeekIC No. : 004373438 Detail

IDTQS3306A: Features: • Enhanced N channel FET with no inherent diode to Vcc• Very low ON resistance (3 typical)• Zero propagation delay, zero added ground bounce• Fast turn-on/turn-off ...

IDTQS3306A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS3306A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Enhanced N channel FET with no inherent diode to Vcc
• Very low ON resistance (3 typical)
• Zero propagation delay, zero added ground bounce
• Fast turn-on/turn-off time
• Undershoot clamp diodes on all switch and control inputs
• Available in SOIC package


Application

• Line control
• Hot-swapping, hot-docking
• Voltage translation (5V to 3.3V)
• Power conservation
• Capacitance reduction and isolation
• Clock gating
• Bus isolation
• Signal suppression/blanking


Pinout

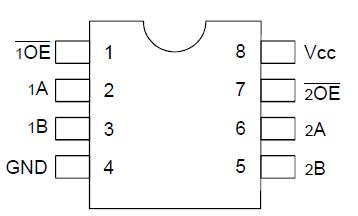

Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +7
V
VTERM(3)
DC Switch Voltage VS
0.5 to +7
V
VTERM(3)
DC Input Voltage VIN
0.5 to +7
V
VAC
AC Input Voltage (pulse width 20ns)
3
V
IOUT
DC Output Current
120
mA
PMAX
MaximumPower Dissipation (TA = 85°C)
0.5
W
TSTG
Storage Temperature
65 to +150
°C
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. Vcc terminals.
3. All terminals except Vcc.


Description

The IDTQS3306A provides a set of two high-speed low resistance (3 typical) CMOS switches connecting inputs to outputs without propagation delay and without generating additional ground bounce noise. Individual enables (OE) are used to turn on the switches. The IDTQS3306A is ideal for signal and control switching since the device adds no noise, ground bounce, propagation delay, or significant power consumption to the system. The QS3306A can also be used for analog switching applications such as video.

The IDTQS3306A is characterized for operation at -40°C to +85°C.
