Product Details

Description



Features:

-  Enhanced N channel FET with no inherent diode to Vcc
-  2.5 bidirectional switches connect inputs to outputs
-  Zero propagation delay, zero ground bounce
-  Undershoot clamp diodes on all switch and control pins
-  Active Low and High enable controls
- Available in 48-pin QVSOP Package



Application

-  Hot-swapping and hot-docking (low RON resistance for PCI and Compact PCI applications)
-  Voltage translation (5V to 3.3V)
-  Power conservation
-  Capacitance reduction and isolation
-  Applications requiring Low resistance and active High enabling
-  Bus isolation
-  Clock gating


Pinout

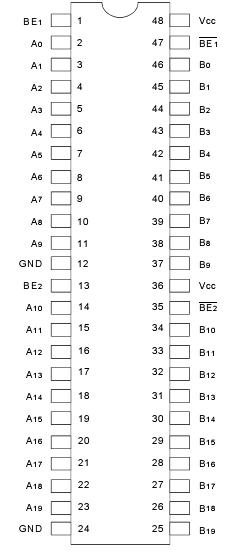

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) Supply Voltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage VS 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current 120 mA
 PMAX Maximum Power Dissipation .5 W
TSTG Storage Temperature 65 to +150



Description

  The QS32XR862 provides two sets of ten high-speed CMOS, TTL-compatible, active high, low resistance bus switches.  The very low ON resistance (2.5?) of the QS32XR862 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise.  The switches are controlled by independent active Low Enable (BE) and active High Enable (BE) controls for each set.

  The QS32XR862 is ideal for switching digital buses as well as for hot plug buffering and 5V to 3.3V conversion.  The low ON resistance of the QS32XR862 makes it ideal for PCI hot -docking applications.

  The QS32XR862 is characterized for operation at -40°C to +85°C.
