Features:

• Enhanced N channel FET with no inherent diode to Vcc
• 2.5 bidirectional switches connect inputs to outputs
• Zero propagation delay, zero ground bounce
• Undershoot clamp diodes on all switch and control inputs
• Available in 48-pin QVSOP package



Application

• Hot-swapping, hot-docking (low resistance for PCI and Compact PCI applications)
• Voltage translation (5V to 3.3V)
• Power conservation
• Capacitance reduction and isolation
• Bus isolation
• Clock gating



Pinout

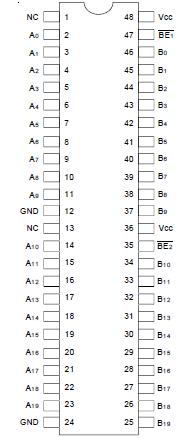

  Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +7
V
VTERM(3)
DC Switch Voltage VS
0.5 to +7
V
VTERM(3)
DC Input Voltage VIN
0.5 to +7
V
VAC
AC Input Voltage (pulse width 20ns)
3
V
IOUT
DC Output Current
120
mA
PMAX
MaximumPower Dissipation (TA = 85°C)
0.5
W
TSTG
Storage Temperature
65 to +150
°C
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. Vcc terminals.
3. All terminals except Vcc.



Description

The QS32XR861 provides two sets of ten high-speed CMOS, TTLcompatible, low resistance bus switches. The very low ON resistance (2.5) of the QS32XR861 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The switches are controlled by independent active Low Enable (BE).

The QS32XR861 is ideal for switching digital buses, as well as for hot plug buffering and 5V to 3.3V conversion. The low ON resistance of the QS32XR861 makes it ideal for PCI hot-docking applications.

The QS32XR831 is characterized for operation at -40°C to +85°C.
