IDTQS32X2245

Features: * Enhanced N channel FET with no inherent diode to Vcc* Dual '245 function*25 resistor for low noise* Low propagation delay, zero ground bounce* Undershoot clamp diodes on all switch and control inputs* TTL-compatible control inputs* Available in 40-pin QVSOP packageApplication* Hot-swap...

product image

IDTQS32X2245 Picture
See larger image
SeekIC No. : 004373422 Detail

IDTQS32X2245: Features: * Enhanced N channel FET with no inherent diode to Vcc* Dual '245 function*25 resistor for low noise* Low propagation delay, zero ground bounce* Undershoot clamp diodes on all switch and c...

IDTQS32X2245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS32X2245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Enhanced N channel FET with no inherent diode to Vcc
* Dual '245 function
*25 resistor for low noise
* Low propagation delay, zero ground bounce
* Undershoot clamp diodes on all switch and control inputs
* TTL-compatible control inputs
* Available in 40-pin QVSOP package


Application

* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Bus switching and isolation
* Power conservation
* Clock gating
* Logic replacement

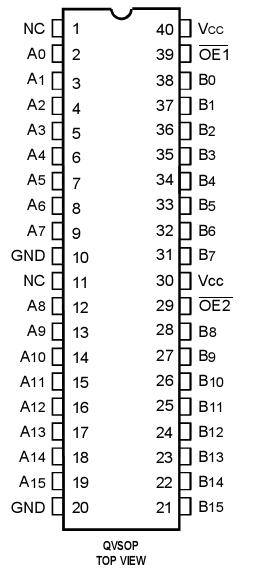

Pinout

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) Supply Voltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage VS 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current 120 mA
PMAX Maximum Power Dissipation (TA = 85) 0.92 W
TSTG Storage Temperature 65 to +150



Description

  The QS32X2245 provides a set of 16 high-speed CMOS TTL-compatible bus switches in a flow-through pinout.  The QS32X2245 includes internal 25 resistors to reduce reflection noise in high speed applications.  The Output Enable (OEn) signals turn the switches on similar to the OEn signal of the 74'245.

  QuickSwitch devices provide an order of magnitude faster speed than conventional logic devices.

  The QS32X2245 is characterized for operation at -40°C to +85°C.
