IDTQS3257

Features: *Enhanced N channel FET with no inherent diode to Vcc*5 bidirectional switches connect inputs to outputs*Pin compatible with the 74F257, 74FCT257, and 74FCT257T*Zero propagation delay, zero ground bounce*Undershoot clamp diodes on all switch and control inputs*TTL-compatible control inpu...

product image

IDTQS3257 Picture
See larger image
SeekIC No. : 004373420 Detail

IDTQS3257: Features: *Enhanced N channel FET with no inherent diode to Vcc*5 bidirectional switches connect inputs to outputs*Pin compatible with the 74F257, 74FCT257, and 74FCT257T*Zero propagation delay, zer...

IDTQS3257 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS3257
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Enhanced N channel FET with no inherent diode to Vcc
*5 bidirectional switches connect inputs to outputs
*Pin compatible with the 74F257, 74FCT257, and 74FCT257T
*Zero propagation delay, zero ground bounce
*Undershoot clamp diodes on all switch and control inputs
*TTL-compatible control inputs
*Available in SOIC, QSOP, and S1 packages


Application

Logic replacement
Video, audio, graphics switching, muxing
Hot-swapping, hot-docking
Voltage translation (5V to 3.3V)
Bus funneling


Pinout

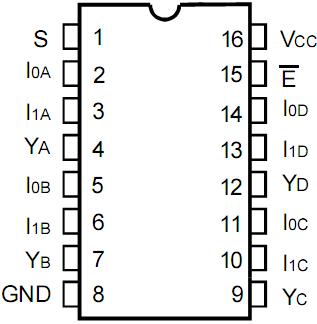

Connection Diagram


Specifications

Symbol

Description

Max

Unit

VTERM(2) Supply Voltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage VS 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current 120 mA
PMAX Maximum Power Dissipation (TA = 85°C) 0.5 W
 TSTG  Storage Temperature  65 to +150



Description

    The QS3257 is a high-speed CMOS LVTTL-compatible Quad  2:1 multiplexer/demultiplexer. The QS3257 is a function and pinout compatible QuickSwitch version of the 74F257, 74FCT257, and the 74ALS/AS/LS257 Quad 2:1 multiplexers. The low ON resistance of the QS3257 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise.

    Mux/Demux devices IDTQS3257 provide an order of magnitude faster speed than equivalent logic devices.

    The QS3257 is characterized for operation at -40 to +85
