Product Details

Description



Features:

*Enhanced N channel FET with no inherent diode to Vcc
*5 bidirectional switches connect inputs to outputs
*Pin compatible with the 74F257, 74FCT257, and 74FCT257T
*Zero propagation delay, zero ground bounce
*Undershoot clamp diodes on all switch and control inputs
*25 resistors for low noise
*TTL-compatible control inputs
*Available in QSOP and S1 packages


Application

Logic replacement (data processing)
Video, audio, graphics switching, muxing
Hot-swapping, hot-docking
Voltage translation (5V to 3.3V)
Bus funneling


Pinout

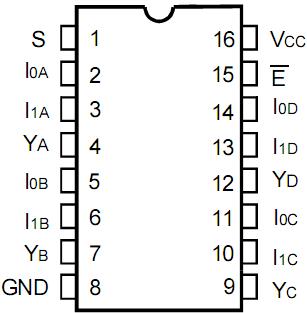

Connection Diagram


Specifications

Symbol

Description

Max

Unit

VTERM(2) Supply Voltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage VS 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current 120 mA
PMAX Maximum Power Dissipation (TA = 85°C) 0.5 W
 TSTG  Storage Temperature  65 to +150




Description

    The QS32257 is a high-speed CMOS LVTTL-compatible Quad  2:1 multiplexer/demultiplexer. The QS32257 is a function and pinout compatible QuickSwitch version of the 74F257, 74FCT257, and the 74ALS/AS/LS257 Quad 2:1 multiplexers. The QS32257 has 25 series resistors to reduce ground noise.

    Mux/Demux devices IDTQS32257 provide an order of magnitude faster speed than equivalent logic devices.

    The QS32257 is characterized for operation at -40 to +85
