IDTQS32245

Features: * Enhanced N channel FET with no inherent diode to Vcc*5 bidirectional switches connect inputs to outputs* Pin compatible with the 74F245, 74FCT245, and 74FCT245T* Low power CMOS proprietary technology* Zero propagation delay, zero ground bounce* Undershoot clamp diodes on all switch and...

product image

IDTQS32245 Picture
See larger image
SeekIC No. : 004373411 Detail

IDTQS32245: Features: * Enhanced N channel FET with no inherent diode to Vcc*5 bidirectional switches connect inputs to outputs* Pin compatible with the 74F245, 74FCT245, and 74FCT245T* Low power CMOS proprieta...

IDTQS32245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS32245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Enhanced N channel FET with no inherent diode to Vcc
*5 bidirectional switches connect inputs to outputs
* Pin compatible with the 74F245, 74FCT245, and 74FCT245T
* Low power CMOS proprietary technology
* Zero propagation delay, zero ground bounce
* Undershoot clamp diodes on all switch and control inputs
*25 resistors for low noise
* TTL-compatible control inputs
* Available in SOIC, QSOP, and TSSOP packages


Application

* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Power conservation
* Capacitance reduction and isolation
* Logic replacement (data processing)
* Clock gating
* Bus switching and isolation


Pinout

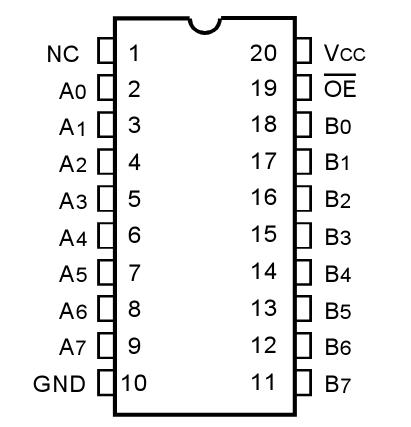

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) SupplyVoltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage VS 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current 120 mA
PMAX Maximum Power Dissipation (TA = 85) 0.5 W
TSTG Storage Temperature 65 to +150



Description

  The QS32245 provides a set of eight high-speed CMOS TTL-compatible bus switches in a pinout compatible with 74FCT245, 74F245, 74ALS/AS/LS245 8-bit transceivers.  The Output Enable (OE) signal turns the switches on similar to the OE signal of the 74'245.  The QS32245 has 25 series resistors to reduce ground bounce noise.

  QuickSwitch devices IDTQS32245 provide an order of magnitude faster speed than conventional logic devices.

  The QS32245 is characterized for operation at -40°C to +85°C.
