Product Details

Description



Features:

• Enhanced N channel FET with no inherent diode to Vcc
• 5 bidirectional switches connect inputs to outputs
• Zero propagation delay, zero ground bounce
• TTL-compatible input and output levels
• Undershoot clamp diodes on all switch and control inputs
• Available in SSOP and TSSOP packages


Application

• Resource sharing
• Crossbar switching
• Hot-docking
• Voltage translation (5V to 3.3V)


Pinout

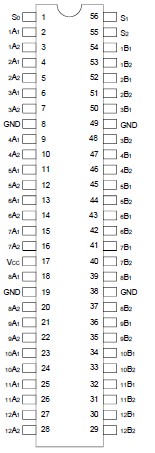

Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +7
V
VTERM(3)
DC Switch Voltage VS
0.5 to +7
V
VTERM(3)
DC Input Voltage VIN
0.5 to +7
V
VAC
AC Input Voltage (pulse width 20ns)
3
V
IOUT
DC Output Current
120
mA
PMAX
MaximumPower
Dissipation (TA = 85°C)
SSOP
0.93
W
TSSOP
0.77
TSTG
Storage Temperature
65 to +150
°C

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC .




Description

The QS316213 provides a set of 24 high-speed CMOS TTL-compatible bus exchange switches. The low ON resistance of the QS316213 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The device operates as a 24-bit bus switch or a 12-bit bus exchanger, which provides data exchanging between the four signal ports through the data-select (S0-S2) terminals.

The QS316213 is characterized for operation at -40°C to +85°C.
