Features:

• 4 PLL architecture
• Linear frequency programming
• Independent frequency programming and SSC control
• Band-gap circuit for differential output
• High power-noise rejection ratio
• 66MHz to 533MHz CPU frequency
• VCO frequency up to 1.1G
• Support index block read/write, single cycle index block read
• Programmable REF, 3V66, PCI, 48MHz I/O drive strength
• Programmable 3V66 and PCI Skew
• Available in SSOP package


Application

• CPU/SRC CLK cycle to cycle jitter < 125ps
• SATA CLK cycle to cycle jitter < 125ps
• PCI CLK cycle to cycle jitter < 250ps
• Static PLL frequency divide error as low as 36 ppm


Pinout

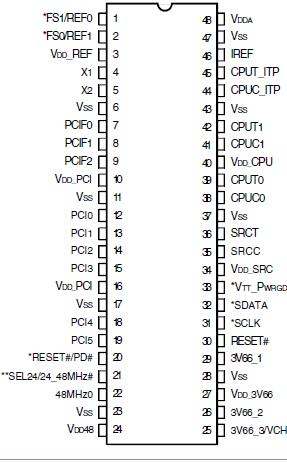

Connection Diagram




Specifications

Symbol Description
Min
Max
Unit
VDDA 3.3V Core Supply Voltage
4.6
V
VDDIN 3.3V Logic Input Supply Voltage
GND - 0.5
4.6
V
TSTG Storage Temperature
65
+150
TAMBIENT Ambient Operating Temperature
0
+70
TCASE Case Temperature
+115
ESD Prot Input ESD Protection
Human Body Model
2000
V



Description

IDTCV119E is a 48 pin clock generation device for desktop PC platforms.

This chip of IDTCV119E incorporates four PLLs to allow independent generation of CPU, AGP/ PCI, SRC, and 48MHz clocks. The dedicated PLL for Serial ATA clock provides high accuracy frequency. IDTCV119E also implements Band-gap referenced IREF to reduce the impact of VDD variation on differential outputs, which can provide more robust system performance.

Static PLL frequency divide error of IDTCV119E can be as low as 36 ppm, providing high accuracy output clock. Each CPU, AGP/PCI, SRC clock has its own Spread Spectrum selection.
