Features: •One high precision PLL for CPU, SSC, and N programming•One high precision PLL for SRC/PCI/SATA, SSC, and N programming•One high precision PLL for 96MHz/48MHz•Band-gap circuit for differential outputs•Support spread spectrum modulation, down spread 0.5%̶...
IDTCV110J: Features: •One high precision PLL for CPU, SSC, and N programming•One high precision PLL for SRC/PCI/SATA, SSC, and N programming•One high precision PLL for 96MHz/48MHz•Band-...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Description | Min | Max | Unit |
VDDA | 3.3V Core Supply Voltage | 4.6 | V | |
VDDIN | 3.3V Logic Input Supply Voltage | GND - 0.5 | 4.6 | V |
TSTG | Storage Temperature | 65 | +150 | °C |
TAMBIENT | Ambient Operating Temperature | 0 | +70 | °C |
TCASE | Case Temperature | +115 | °C | |
ESD Prot | Input ESD Protection Human Body Model |
2000 | V |

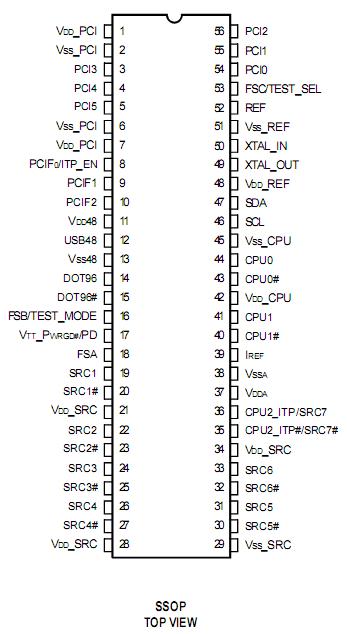

IDTCV110J is a 56 pin clock device. The CPU output buffer is designed to support up to 400MHz processor. This chip has three PLLs inside for CPU/SRC/PCI, SATA, and 48MHz/DOT96 IO clocks. One dedicated PLL for Serial ATA clock provides high accuracy frequency. IDTCV110J also implements Band-gap referenced IREF to reduce the impact of VDD variation on differential outputs, which can provide more robust system performance.
Static PLL frequency divide error of IDTCV110J can be as low as 36 ppm, worse case 114ppm, providing high accuracy output clock. Each CPU/SRC/PCI, SATA clock has its own Spread Spectrum selection, which allows for isolated changes instead of affecting other clock groups.
