Features: • 1 to 10 differential clock distribution• Optimized for clock distribution in DDR (Double Data Rate) SDRAM applications• Operating frequency: 60MHz to 220MHz• Very low skew: <100ps for PC1600 - PC2700 <75ps for PC3200• Very low jitter: <75ps for PC...
IDTCSPT857C: Features: • 1 to 10 differential clock distribution• Optimized for clock distribution in DDR (Double Data Rate) SDRAM applications• Operating frequency: 60MHz to 220MHz• Very...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Rating |
Symbol |
Max |
unit |
Supply Voltage Range |
V CC1, VCC2 |
0.5 to +4.6
|
V |
Input Voltage Range |
VI (2)
|
0.5 to +5.5 |
V |
Voltage range applied to any output in the high or low state |
VO(2) |
0.5 to VDD + 0.5
|
V |
Input clamp current |
IIK (VI < 0)
|
50 |
mA |
Terminal Voltage with Respect to GND (inputs VIH 2.5, VIL 2.5) |
IOK (VO < 0 or VO > VDD) |
-50
|
mA |
Continuous Output Current |
IRES |
±100 |
mA |
Continuous Current |
VDD or GND |
100 |
mA |
Storage Temperature Range |
TSTG |
65 to +150 |
°C |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
3. The maximum package power dissipation is calculated using a junction temperature of 150°C and a board trace length of 750 mils.

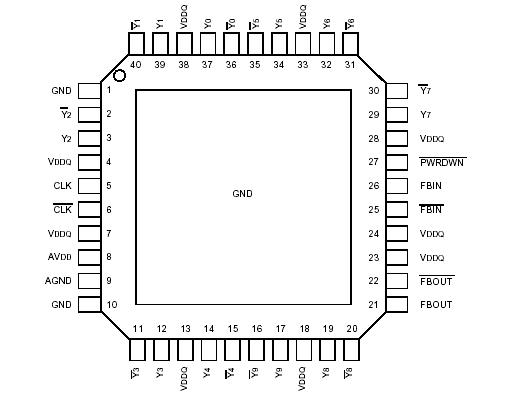

The CSPT857C is a PLL based clock driver that acts as a zero delay buffer to distribute one differential clock input pair(CLK, CLK ) to 10 differential output pairs (Y [0:9], Y [0:9]) and one differential pair of feedback clock output (FBOUT, FBOUT). External feedback pins (FBIN, FBIN) IDTCSPT857C for synchronization of the outputs to the input reference is provided.
A CMOS Enable/Disable pin is available for low power disable. When the input frequency falls below approximately 20MHz, the device will enter power down mode. In this mode, the receivers are disabled, the PLL IDTCSPT857C is turned off, and the output clock drivers are tristated, resulting in a current consumption of less than 200µA.
The CSPT857C requires no external components and has been optimised for very low I/O phase error, skew, and jitter, while maintaining frequency and duty cycle over the operating voltage and temperature range. The CSPT857C, designed for use in both module assemblies and system motherboard based solutions, provides an optimum high-performance clock source.
The CSPT857C is available in Commercial Temperature Range (0°C to +70°C) and Industrial Temperature Range (-40°C to +85°C). See Ordering Information for details.
