Features:

• Phase-Lock Loop Clock Distribution for Synchronous DRAM
Applications
• Distributes one clock input to one bank of ten outputs
• Output enable bank control
• External feedback (FBIN) pin is used to synchronize the output
to the clock input signal
• On-chip series damping resistors with each driver
• No external RC network required for PLL loop stability
• Operates at 3.3V VDD
• tpd Phase Error at 133MHz: < ±150ps
• Jitter (cycle-cycle)(peak-to-peak) at 66MHz to 133MHz: | 70 | ps
• Spread Spectrum Compatible
• Operating frequency 25MHz to 140MHz
• Fully conforms to PC133 specifications
• Available in 24-Pin TSSOP package



Pinout

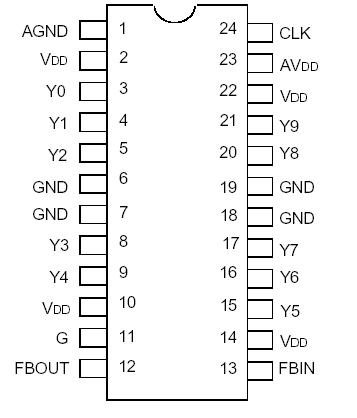

  Connection Diagram


Specifications

Rating
Symbol
Max
unit
Supply Voltage Range
V CC1, VCC2
0.5 to +4.6
V
Input Voltage Range
VI (2)
0.5 to +5.5
V
Voltage range applied to any
output in the high or low state
VO(2)
0.5 to VDD + 0.5
V
Input clamp current
IIK (VI < 0)
50
mA
Terminal Voltage with Respect
to GND (inputs VIH 2.5, VIL 2.5)
IOK
(VO < 0 or VO > VDD)
-50
mA
Continuous Output Current
IRES
±100
mA
Continuous Current
VDD or GND
65 to +150
mA
Junction Temperature
TSTG
+150
°C

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.
2. The input and output negative-voltage ratings may be exceeded if the input and output
clamp-current ratings are observed.
3. The maximum package power dissipation is calculated using a junction temperature
of 150°C and a board trace length of 750 mils.



Description

The IDTCSPF2510C is a high performance, low-skew, low-phase-lock loop (PLL) clock driver. It uses a PLL to precisely align, infrequency and phase, the feedback (FBOUT) output to the clock (CLK) input signal. It is specifically designed for use with synchronous DRAMs.

The CSPF2510C operates at 3.3V and provides integrated series-damping resistors that make IDTCSPF2510C ideal for driving point-to-point loads, single or dual. One bank of ten outputs provide low-skew, low-jitter copies of CLK. Output signal duty cycles are adjusted to 50 percent, independent of the duty cycle at CLK. The outputs of IDTCSPF2510C can be enabled or disabled via the control G input. When the G input is high, the outputs switch in phase and frequency with CLK; when the G input is low, the outputs are disabled to the logic-low state. Unlike many products containing PLLs, the CSPF2510C does not require external RC networks.

The loop filter IDTCSPF2510C for the PLL is included on-chip, minimizing component count, board space, and cost. Because IDTCSPF2510C is based on PLL circuitry, the CSPF2510C requires a stabilization time to achieve phase lock of the feedback signal to the reference signal. This stabilization time is required, following power up and application of a fixed-frequency, fixed-phase signal at CLK, as well as following any changes to the PLL IDTCSPF2510C reference or feedback signals. The PLL can be bypassed for the test purposes by strapping AVDD to ground.

The CSPF2510C is characterized for operation from 0°C to +85°C. This device is also available (on special order) in Industrial (-40°C to +85°C)
