Features:

• Phase-Lock Loop Clock Distribution for Synchronous DRAM
Applications
• Distributes one clock input to one bank of ten outputs
• Output enable bank control
• External feedback (FBIN) pin is used to synchronize the
outputs to the clock input signal
• No external RC network required for PLL loop stability
• Operates at 3.3V VDD
• tpd Phase Error at 166MHz: < ±150ps
• Jitter (peak-to-peak) at 166MHz: < ±75ps @ 166MHz
• Spread Spectrum Compatible
• Operating frequency 50MHz to 175MHz
• Available in 24-Pin TSSOP package



Application

• SDRAM Modules
• PC Motherboards
• Workstations



Pinout

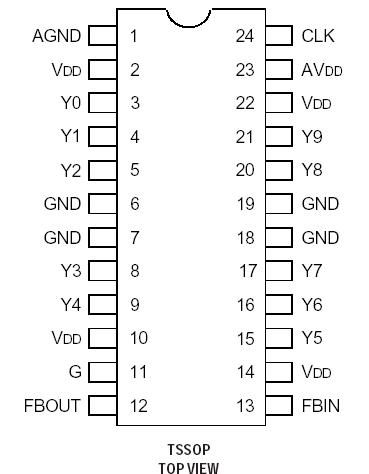

  Connection Diagram


Specifications

Rating
Symbol
Max
unit
Supply Voltage Range
V CC1, VCC2
0.5 to +4.6
V
Input Voltage Range
VI (2)
0.5 to +5.5
V
Voltage range applied to any
output in the high or low state
VO(2)
0.5 to VDD + 0.5
V
Input clamp current
IIK (VI < 0)
50
mA
Terminal Voltage with Respect
to GND (inputs VIH 2.5, VIL 2.5)
IOK
(VO < 0 or VO > VDD)
-50
mA
Continuous Output Current
IRES
±100
mA
Continuous Current
VDD or GND
65 to +150
mA
Junction Temperature
TSTG
+150
°C

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.
2. The input and output negative-voltage ratings may be exceeded if the input and output
clamp-current ratings are observed.
3. The maximum package power dissipation is calculated using a junction temperature
of 150°C and a board trace length of 750 mils.



Description

The CSP2510D is a high performance, low-skew, low-jitter, phase-lock loop (PLL) clock driver. IDTCSP2510D uses a PLL to precisely align, in both frequency and phase, the feedback (FBOUT) output to the clock (CLK) input signal. It is specifically designed for use with synchronous DRAMs.

The CSP2510D operates at 3.3V. One bank of ten outputs provide low-skew, low-jitter copies of CLK. Output signal duty cycles of IDTCSP2510D are adjusted to 50 percent, independent of the duty cycle at CLK. The outputs can be enabled or disabled via the control G input. When the G input is high, the outputs switch in phase and frequency with CLK; when the G input is low, the outputs are disabled to the logic-low state. Unlike many products containing PLLs, the CSP2510D does not require external RC networks. The loop filter IDTCSP2510D for the PLL is included on-chip, minimizing component count, board space, and cost.

Because IDTCSP2510D  is based on PLL circuitry, the CSP2510D requires a stabilization time to achieve phase lock of the feedback signal to the reference signal. This stabilization time is required, following power up and application of a fixed-frequency, fixed-phase signal at CLK, as well as following any changes to the PLL reference or feedback signals. The PLL can be bypassed for the test purposes by strapping AVDD to ground.

The CSP2510D is specified for operation from 0°C to +85°C. IDTCSP2510D is also available (on special order) in Industrial temperature range (-40°C to +85°C). See ordering information for details.
