Features: · Supports AT&T TR62411 and Telcordia GR-1244-CORE Stratum 3, Stratum 4 Enhanced and Stratum 4 clock, OC-3 port and 155.52 Mbit/s application
· Supports ITU-T G.813 Option 1 clocks
· Supports ITU-T G.812 Type IV clocks
· Supports ETSI ETS 300 011, TBR 4, TBR 12 and TBR 13 timing for E1 interface
· Selectable reference inputs: 8 kHz, 1.544 MHz, 2.048 MHz or 19.44 MHz
· Accepts two independent reference inputs which may have same or different nominal frequencies applied to them
· Provides C1.5o, C3o , C2o, C4o , C6o, C8o, C16o , C19o, C32o and C155 output clock signals
· Provides 7 types of 8 kHz framing pulses: F0o , F8o, F16o , F19o, F32o , RSP and TSP
· Provides a C2/C1.5 output clock signal with the frequency controlled by the selected reference input Fref0 or Fref1
· Holdover frequency accuracy of 0.025 ppm
· Phase slope of 5 ns per 125 µs
· Attenuates wander from 2.1 Hz
· Fast lock mode
· Provides Time Interval Error (TIE) correction
· MTIE of 600 ns
· JTAG boundary scan
· Holdover status indication
· Freerun status indication
· Normal status indication
· Lock status indication
· Input reference quality indication
· 3.3 V operation with 5 V tolerant I/O

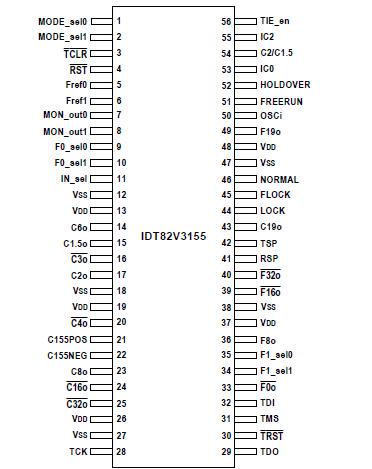

· Package available: 56-pin SSOP (Green option available)Pinout
Specifications
|
Ratings |
Min. |
Max. |
Unit |
|
Power supply voltage |
-0.5 |
5.0 |
V |
| Voltage on any pin with respect to ground |
-0.5 |
5.5 |
V |
| Package power dissipation |
|
200 |
mW |
|
Storage temperature |
-55 |
125 |
°C |
Note: Stresses greater than those listed under ABSOLUTE MAXIMUM
RATINGS may cause permanent damage to the device. This is a stress
rating only and functional operation of the device at these or any other
conditions above those indicated in the operational sections of this
specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.DescriptionThe IDT82V3155 is an enhanced T1/E1/OC3 WAN PLL with dual reference inputs. It contains a Digital Phase-Locked Loop (DPLL), which generates low jitter ST-BUS, 19.44 MHz and 155.52 MHz clock and framing signals that are phase locked to an 8 kHz, 1.544 MHz, 2.048 MHz or 19.44 MHz input reference.
The IDT82V3155 provides 10 types of clock signals (C1.5o, C3o , C6o, C2o, C4o , C8o, C16o , C19o, C32o , C155) and 7 types of framing signals (F0o o, F8o, F16o, F19o, F32o , RSP, TSP) for multitrunk T1/E1 and STS3/OC3 links.
The IDT82V3155 is compliant with AT&T TR62411, Telcordia GR- 1244-CORE Stratum 3, Stratum 4 Enhanced, Stratum 4, OC-3 port, 155.52 Mbit/s application and ETSI ETS 300 011, ITU-T G.813 Option 1, and ITU-T G.812 Type IV clocks. It meets the jitter/wander tolerance, jitter/wander transfer, intrinsic jitter/wander, frequency accuracy, capture range, phase change slope, holdover frequency accuracy and MTIE (Maximum Time Interval Error) requirements for these specifications.
The IDT82V3155 can be used in synchronization and timing control for T1, E1 and OC3 systems, or used as ST-BUS clock and frame pulse source. It also can be used in access switch, access routers, ATM edge switches, wireless base station controllers, or IADs (Integrated Access Devices), PBXs, line cards and SONET/SDH equipments.
IDT82V3155 Data Sheet
