IDT82V3001A

Features:

 Supports AT&T TR62411 and Telcordia GR-1244-CORE Stra-tum 4 Enhanced and Stratum 4 timing for DS1 interfaces
Supports ETSI ETS 300 011, TBR 4, TBR 12 and TBR 13 tim- ing for E1 interface
Selectable input reference signal: 8 kHz, 1.544 MHz or 2.048 MHz
Provides eight types of clock signals: C1.5o, C3o, C2o, C4o, C6o, C8o, C16o and C32o
Provides six types of 8 kHz framing pulses: F0o, F8o, F16o, F32o, RSP and TSP
Holdover frequency accuracy of 0.025 ppm
Phase slope of 5 ns/125 s
Attenuates wander from 2.1 Hz
Fast Lock mode
Provides Time Interval Error (TIE) correction
MTIE of 600 ns
JTAG boundary scan
Holdover status indication
Freerun status indication
Normal status indication
Lock status indication
3.3 V operation with 5 V tolerant I/O
Package available: 56-pin SSOP

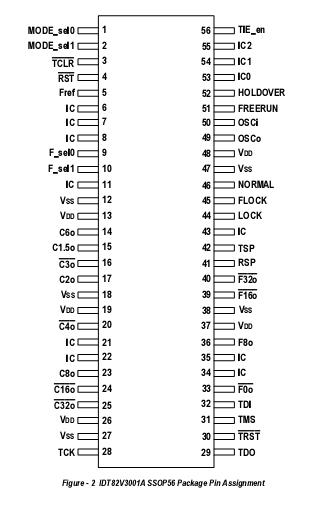

Pinout




Specifications

Rating	Min.	Max.	Unit
Power Supply Voltage	-0.5	5.0	V
Voltage on Any Pin with Respect to Ground	-0.5	VDD+ 0.5	V
Package Power Dissipation		200	mW
Storage Temperature	-55	125

Note:
Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The IDT82V3001A is a WAN PLL with single reference input. It contains a Digital Phase-Locked Loop (DPLL), which generates ST-BUS clocks and framing signals that are phase locked to a 2.048 MHz, 1.544 MHz or 8 kHz input reference.

The IDT82V3001A provides eight types of clock signals (C1.5o, C3o,C6o, C2o, C4o, C8o, C16o, C32o) and six types of framing signals (F0o,F8o, F16o, F32o, RSP, TSP) for the multitrunk T1 and E1 primary rate transmission links.

The IDT82V3001A is compliant with AT&T TR62411, Telcordia GR-1244-CORE Stratum 4 Enhanced and Stratum 4, ETSI ETS 300 011. Itmeets the jitter/wander tolerance, jitter/wander transfer, intrinsic jitter/ wander, frequency accuracy, capture range, phase change slope, holdover frequency accuracy and MTIE (Maximum Time Interval Error)requirements for these specifications.

The IDT82V3001A can be used in synchronization and timing control for T1 and E1 systems, or used as ST-BUS clock and frame pulse sources. It can also be used in access switch, access routers, ATM edge switches, wireless base station controllers, or IADs (Integrated Access Devices), PBXs and line cards.
