IDT821621

Features: · SLIC operating states: Active, Ringing, Standby and Disconnect· Low Standby power consumption (35 mW)· −19 V to −58 V battery operation· On-hook transmission· Two-wire impedance set by single external impedance· Programmable constant-current feed· Programmable loop-detect t...

product image

IDT821621 Picture
See larger image
SeekIC No. : 004373336 Detail

IDT821621: Features: · SLIC operating states: Active, Ringing, Standby and Disconnect· Low Standby power consumption (35 mW)· −19 V to −58 V battery operation· On-hook transmission· Two-wire impeda...

IDT821621 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT821621
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· SLIC operating states: Active, Ringing, Standby and Disconnect
· Low Standby power consumption (35 mW)
· −19 V to −58 V battery operation
· On-hook transmission
· Two-wire impedance set by single external impedance
· Programmable constant-current feed
· Programmable loop-detect threshold
· Programmable ring-trip detect threshold
· +3.3 V / +5 V compatible power supply
· No −5 V supply required
· On-chip Thermal Management (TMG)
· Four on-chip relay drivers and relay snubbers, 1 ringing and 3
  general purpose
· Package available: 32 pin PLCC


Pinout

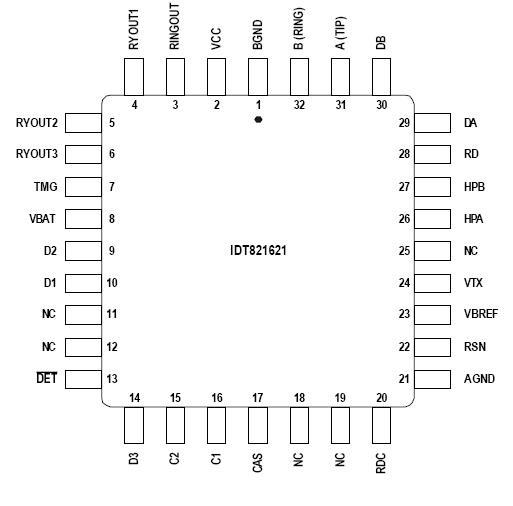

Connection Diagram


Specifications

Rating
Com'I & Ind'I
Unit
Power Supply Voltage VCC
-0.4 to +7
V
Battery Voltage VBAT
0.4 to -70
V
Voltage on Any Pin with Respect to Ground (Low Voltage Portion)
-0.4 to VCC+0.4
W
Voltage on Any Pin with Respect to Ground (High Voltage Portion)
+1 to VBAT
V
Package Power Dissipation
1.7
W
Storage Temperature
-65 to +150
°C



Description

The IDT821621 is a long haul Subscriber Line Interface Circuit. It implements the basic telephone line interface functions such as battery feeding, impedance matching, off-hook detection and ring-trip detection.

The IDT821621 allows battery feeding between −19 V and −58 V and has the capability for driving long loops. The architecture of operating the SLIC in different states according to different loop states minimizes the system power dissipation.

This long haul SLIC is pin-to-pin compatible with AMD7920. IDT821621 provides a cost-effective solution for PBX and Central Office applications.
