Features:

· SLIC operating states: Active, Reverse Active, Ringing,
  Standby and Disconnect
· Polarity reversal function
· Low standby power consumption (35 mW)
· −19 V to −58 V battery operation
· On-hook transmission
· Two-wire impedance set by single external impedance
· Programmable constant-current feed
· Programmable loop-detect threshold
· Programmable ring-trip detect threshold
· +3.3 V / +5 V compatible power supply
· No −5 V supply required
· On-chip Thermal Management (TMG)
· Three on-chip relay drivers and relay snubbers, 1 ringing and 2
  general purpose
· Package available: 32 pin PLCC


Pinout

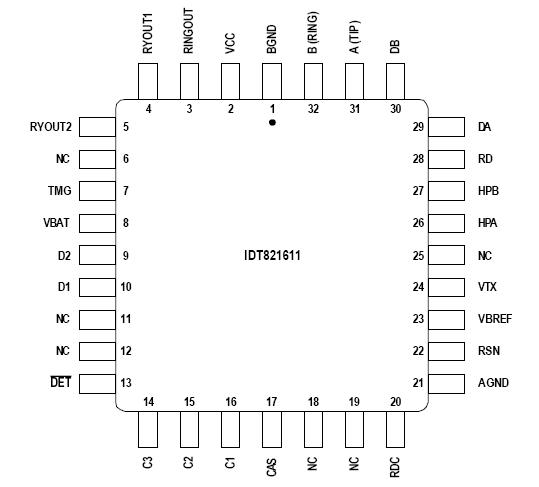

Connection Diagram


Specifications

Rating
Com'I & Ind'I
Unit
Power Supply Voltage VCC
-0.4 to +7
V
Battery Voltage VBAT
0.4 to -70
V
Voltage on Any Pin with Respect to Ground (Low Voltage Portion)
-0.4 to VCC+0.4
W
Voltage on Any Pin with Respect to Ground (High Voltage Portion)
+1 to VBAT
V
Package Power Dissipation
1.7
W
Storage Temperature
-65 to +150
°C



Description

The IDT821611 is a long haul Subscriber Line Interface Circuit. It implements the basic telephone line interface functions such as battery feeding, impedance matching, off-hook detection and ring-trip detection.

The IDT821611 allows battery feeding between −19 V and −58 V and has the capability for driving long loops. IDT821611 provides polarity reversal function that will save an external relay in comparison with the IDT821621. The architecture of operating the SLIC in different states according to different loop states minimizes the system power  dissipation.

This long haul SLIC IDT821611 provides a cost-effective solution for PBX and Central Office applications.
