IDT7MP4095

Features: • High density 4 megabit static RAM modules• Low profile 64-pin ZIP (Zig-zag In-line vertical Package), 64-lead, 72-lead SIMMs (Single In-line Memory Modules)• Fast access time: 15ns (max.)• Surface mounted plastic components on an epoxy laminate (FR-4) substrate&...

product image

IDT7MP4095 Picture
See larger image
SeekIC No. : 004373323 Detail

IDT7MP4095: Features: • High density 4 megabit static RAM modules• Low profile 64-pin ZIP (Zig-zag In-line vertical Package), 64-lead, 72-lead SIMMs (Single In-line Memory Modules)• Fast acces...

IDT7MP4095 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT7MP4095
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High density 4 megabit static RAM modules
• Low profile 64-pin ZIP (Zig-zag In-line vertical Package), 64-lead, 72-lead SIMMs (Single In-line Memory Modules)
• Fast access time: 15ns (max.)
• Surface mounted plastic components on an epoxy laminate (FR-4) substrate
• Single 5V (±10%) power supply
• Multiple GND pins and decoupling capacitors for maximum noise immunity
• Inputs/outputs directly TTL compatible
• Gold plated fingers on the SIMM version


Pinout

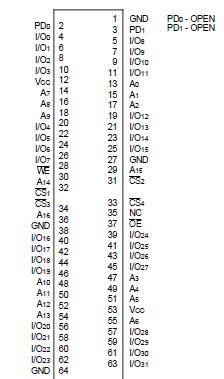

Connection Diagram


Specifications

Symbol Rating Value Unit
VTERM
 Terminal Voltagewith Respect toGND 0.5 to +7.0 V
TA OperatingTemperature 0 to +70 °C
TBIAS TemperatureUnder Bias 10 to +85 °C
TSTG StorageTemperature 55 to +125 °C
IOUT DC OutputCurrent 50 mA

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The IDT7MP4095/7MP4060 are 128K x 32 static RAM modules constructed on an epoxy laminate (FR-4) substrate using four 128K x 8 static RAMs in plastic SOJ packages. That are available with access times as fast as 15ns with minimal power consumption.

The IDT7MP4095 is packaged in a 64-pin FR-4 ZIP (Zigzag In-line vertical Package) or a 64-lead SIMM (Single In-line Memory Module). The IDT7MP4060 is packaged in a 72-lead SIMM. The ZIP configuration allows 64 pins to be placed on a package 3.65 inches long and 0.21 inches thick. At only 0.60 inches high,IDT7MP4095 low-profile package ofc is ideal for systems with minimum board spacing, while the SIMM configuration allows use of edge mounted sockets to secure the module.

All inputs and outputs of the IDT7MP4095/7MP4060 are TTL compatible and operate from a single 5V supply. Full asynchronous circuitry requires no clocks or refresh for operation and provides equal access and cycle times for ease of use.
