IDT77010

Features: · Single chip ATM Layer UTOPIA Level 1 to 4-bit DPI interface.· Supports ATM Forum UTOPIA Level 1 interface.· Supports ATM device interface in Cell mode.· Capable of full-duplex operation up-to 160 Mbps.· Utility bus interface to access PHY registers.· In-stream control to access PHY reg...

product image

IDT77010 Picture
See larger image
SeekIC No. : 004373259 Detail

IDT77010: Features: · Single chip ATM Layer UTOPIA Level 1 to 4-bit DPI interface.· Supports ATM Forum UTOPIA Level 1 interface.· Supports ATM device interface in Cell mode.· Capable of full-duplex operation ...

IDT77010 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT77010
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Single chip ATM Layer UTOPIA Level 1 to 4-bit DPI interface.
· Supports ATM Forum UTOPIA Level 1 interface.
· Supports ATM device interface in Cell mode.
· Capable of full-duplex operation up-to 160 Mbps.
· Utility bus interface to access PHY registers.
· In-stream control to access PHY registers.


Pinout

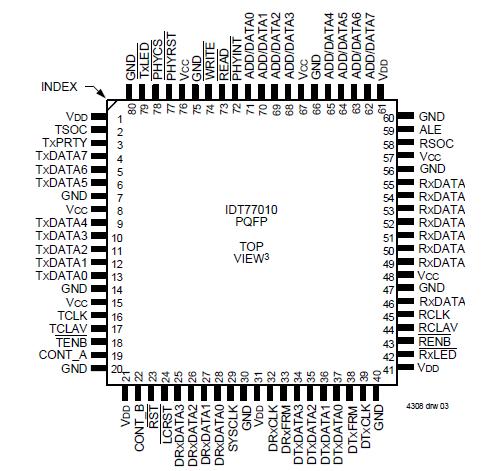

Connection Diagram


Specifications

Symbol
Parameter
MIN.
MAX.
UNIT
VCC
5V Digital Supply Voltage
0.3
6.0
V
VDD
3.3V Digital Supply Voltage
0.3
4.6
V
VIN
Digital Input Voltage
VSS
VCC + 0.5
V
IOUT
Output Current
____
50
mA
TSTG
Storage Temperature
55
140
°C



Description

The 77010 interfaces a UTOPIA PHY device to a device that uses a Data Path Interface (DPI). Examples of PHY devices may include the IDT77105, and the IDT77V400 Switching Memory is an example of a component that utilizes a DPI interface. Figure 1 illustrates a typical application using the IDT77010.

The UTOPIA level 1 bus interface runs at speeds up to 155 Mbps, with the DPI-4 interface capable of full duplex operation at 160 Mbps. In-stream programming is used to read and write to the PHY registers, with the Control Cells of IDT77010 being generated from a remote controlling agent. The Control Cells are used to configure, control and retrieve status of the PHY device.
