IDT74LVC2244A

Features:

* 0.5 MICRON CMOS Technology
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using
   machine model (C = 200pF, R = 0)
*VCC = 3.3V ± 0.3V, Normal Range
*VCC = 2.7V to 3.6V, Extended Range
* CMOS power levels (0.4 W typ. static)
* Rail-to-rail output swing for increased noise margin
* All inputs, outputs, and I/O are 5V tolerant
* Available in SOIC, SSOP, QSOP, and TSSOP packages


Application

* 5V and 3.3V mixed voltage systems
* Data communication and telecommunication systems

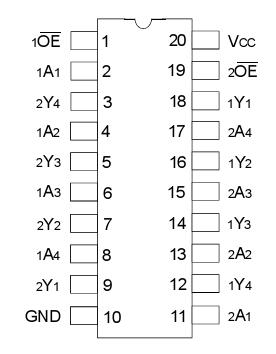

Pinout




Specifications

Symbol	Description	Max	UNITS
VTERM	Terminal Voltage with Respect to GND	0.5 to +6.5	V
TSTG	Storage Temperature	65 to +150	°C
IOUT	DC Output Current	50 to +50	mA
IIK IOK	Continuous Clamp Current, VI < 0 or VO < 0	50	mA
ICC ISS	Continuous Current through each VCC or GND	±100	mA

Description

This octal buffer/driver of the IDT74LVC2244A is built using advanced dual metal CMOS technology. The LVC2244A device is organized as two 4-bit line drivers with separate output-enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs.  When OE is high, the outputs are in the high-impedance state.

To ensure the high-impedance state during power up or power down, OE should be tied to Vcc through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
