Product Details

Description



Features:

• 0.5 MICRON CMOS Technology
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• CMOS power levels (0.4 W typ. static)
• Rail-to-Rail output swing for increased noise margin
• All inputs, outputs, and I/Os are 5V tolerant
• Supports hot insertion
• Available in QSOP, SOIC, SSOP, and TSSOP packages



Application

• 5V and 3.3V mixed voltage systems
• Data communication and telecommunication systems



Pinout

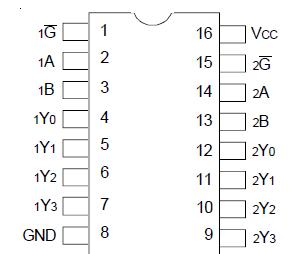

  Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM
Terminal Voltage with Respect to GND
0.5 to +6.5
V
TSTG
Storage Temperature
65 to +150
°C
IOUT
DC Output Current
50 to +50
mA
IIK
IOK
Continuous Clamp Current,
VI < 0 or VO < 0
50
mA
ICC
ISS
Continuous Current through each
VCC or GND
±100
mA

NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

This dual 2-line to 4-line decoder/demultiplexer is built using advanced  dual metal CMOS technology. The LVC139A comprises two individual 2- line to 4-line decoders in a single package. The active-low enable (G) input can be used as a data line in demultiplexing applications. This decoder/ demultiplexer IDT74LVC139A features fully buffered inputs, each of which represents only one normalized load to its driving circuit.

Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of IDT74LVC139A as a translator in a mixed 3.3V/5V supply system.

The LVC139A has been designed with a ±24mA output driver. This driver is capable of driving a moderate to heavy load while maintaining speed performance
