IDT74FST163212

Features: • Bus switches provide zero delay paths• Extended commercial range of 40°C to +85°C• Low switch on-resistance: FST163xxx 4Ω• TTL-compatible input and output levels• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF,...

product image

IDT74FST163212 Picture
See larger image
SeekIC No. : 004373107 Detail

IDT74FST163212: Features: • Bus switches provide zero delay paths• Extended commercial range of 40°C to +85°C• Low switch on-resistance: FST163xxx 4Ω• TTL-compatible input and output ...

IDT74FST163212 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT74FST163212
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Bus switches provide zero delay paths
• Extended commercial range of 40°C to +85°C
• Low switch on-resistance:
   FST163xxx 4Ω
• TTL-compatible input and output levels
• ESD > 2000V per MIL-STD-883, Method 3015;
   > 200V using machine model (C = 200pF, R = 0)
• Available in SSOP, TSSOP and TVSOP


Pinout

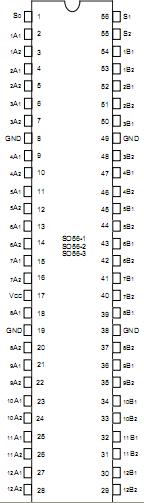

Connection Diagram


Specifications

Symbol Description Max. Unit
VTERM(2) Terminal Voltage with Respect to GND 0.5 to +7.0 V
TSTG Storage Temperature 65 to +150
IOUT Maximum Continuous Channel Current 128 mA
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.  Exposure to absolute maximum rating condiitions for extended periods may affect reliability.
2. VCC, Control and Switch terminals.


Description

    The IDT74FST163212 belongs to IDT's family of Bus switches.Bus switch devices perform the function of connecting or isolating two ports without providing any inherent current sink or source capability.  Thus they generate little or no noise of their own while providing a low resistance path for an external driver.  These devices connect input and output ports through an n-channel FET.  When the gate-to-source junction of this FET is adequately forward-biased the device conducts and the resistance between input and output ports is small.  Without adequate bias on the gate to-source junction of the FET,the FET is turned off, therefore with no VCC applied, the device has hot insertion capability.

    The low on-resistance and simplicity of the connection between input and output ports reduces the delay in this path to close to zero.

    The IDT74FST163212 provides four 12-bit TTL- compatible ports that support 2 way bus exchange.  The S0-2 pins control the bus exchange and switch enable functions.
