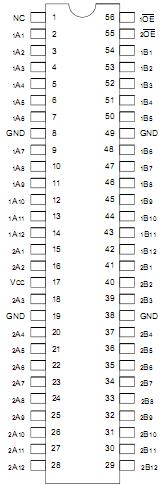

Features: • Bus switches provide zero delay paths• Low switch on-resistance; 5Ω• TTL-compatible input and output levels• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)• Available in TSSOP packagePinoutSpecifications...
IDT74FST163211: Features: • Bus switches provide zero delay paths• Low switch on-resistance; 5Ω• TTL-compatible input and output levels• ESD > 2000V per MIL-STD-883, Method 3015; &g...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Description | Max. | Unit |
VTERM(2) | Terminal Voltage with Respect to GND | 0.5 to +7 | V |
TSTG | Storage Temperature | 65 to +150 | |
IOUT | Maximum Continuous Channel Current | 128 | mA |
The IDT74FST163211 belongs to IDT's family of Bus switches. Bus switch devices perform the function of connecting or isolating two ports without providing any inherent current sink or source capability. Thus they generate little or no noise of their own while providing a low resistance path for an external driver. These devices connect input and output ports through an n-channel FET. When the gate-to-source junction of this FET of the IDT74FST163211 is adequately forward-biased, the device conducts and the resistance between input and output ports is small. Without adequate bias on the gate- to-source junction of the FET, the FET is turned off, therefore with no VCC applied, the device has hot insertion capability.
The low on-resistance and simplicity of the connection between input and output ports reduces the delay in this path to close to zero.
