IDT74FCT3807/A

Features:

•0.5 MICRON CMOS Technology
•Guaranteed low skew < 350ps (max.)
•Very low duty cycle distortion < 350ps (max.)
•High speed: propagation delay < 3ns (max.)
•Very low CMOS power levels
•TTL compatible inputs and outputs
•1:10 fanout
•Maximum output rise and fall time < 1.5ns (max.)
•Low input capacitance: 4.5pF typical
•V_CC = 3.3V ± 0.3V
•Inputs can be driven from 3.3V or 5V components
•Available in SSOP, SOIC, and QSOP packages

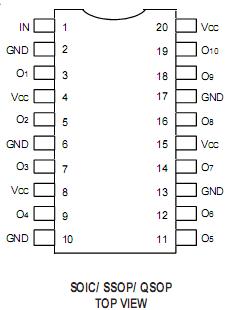

Pinout




Specifications

Symbol	Description	Max	Unit
VTERM(2)	Terminal Voltage with Respect to GND	0.5 to +4.6	V
VTERM(3)	Terminal Voltage with Respect to GND	0.5 to +7	V
VTERM(4)	Terminal Voltage with Respect to GND	0.5 to VCC+0.5	V
TSTG	Storage Temperature	65 to +150	°C
IOUT	DC Output Current	60 to +60	mA

Description

The IDT74FCT3807/A 3.3V clock driver is built using advanced dual metal CMOS technology.  This low skew clock driver offers 1:10 fanout.  The large fanout from
a single input reduces loading on the preceding driver and provides an efficient clock distribution network.  The IDT74FCT3807/A offers low capacitance inputs with
hysteresis for improved noise margins.  Multiple power and grounds reduce noise.  Typical applications are clock and signal distribution.
